- Item

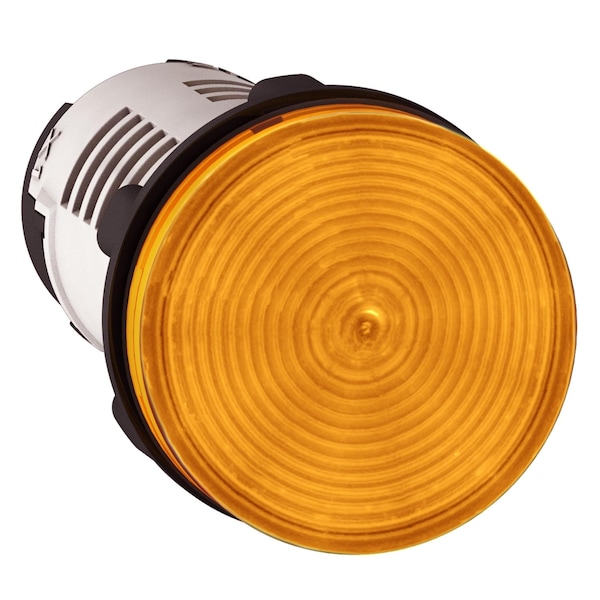

- Monolithic pilot light,plastic,orange,
- Voltage
- 230 to 240V AC
- Color
- Orange
- Lamp Type
- LED
- Shape
- Round
- Terminal Connection
- Screw Clamp terminals
- Contact Form
- (X1-X2)PL
- Type
- Steady Signal
- Average Life
- 70,000 hr
- NEMA Rating
- 4, 12
- IP Rating
- IP20/IP65
- Hz
- 50/60 Hz
- Standards
- IEC 60947-5-1, IEC 60947-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Terminals Description Iso N°1
- (X1-X2)PL
- Range of Product
- Harmony XB7
- Ambient Air Temperature For Operation
- -25-70°C
- Electromagnetic Compatibility
- disturbing field emission class B conforming to IEC 55011
- Ambient Air Temperature For Storage
- -40-70°C
- Product or Component Type
- pilot light
- Shape of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Protective Treatment
- TH
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Signalling Type
- steady
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- Service Life
- 70000 h at rated voltage and 25°C
- Nema Degree of Protection
- NEMA 4 UL 50 E, NEMA 12 UL 50 E
- [Us] Rated Supply Voltage
- 230...240 V AC 50/60 Hz
- Supply Voltage Limits
- 195-264 V AC
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Overvoltage Category
- class II IEC 60536
- Device Presentation
- monolithic product
- Shape of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Ip Degree of Protection
- IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
- Cap/Operator or Lens Colour
- orange
- Bulb Base
- integral LED
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
- Current Consumption
- 16...20 mA
- Light Source
- LED
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Device Short Name
- XB7
