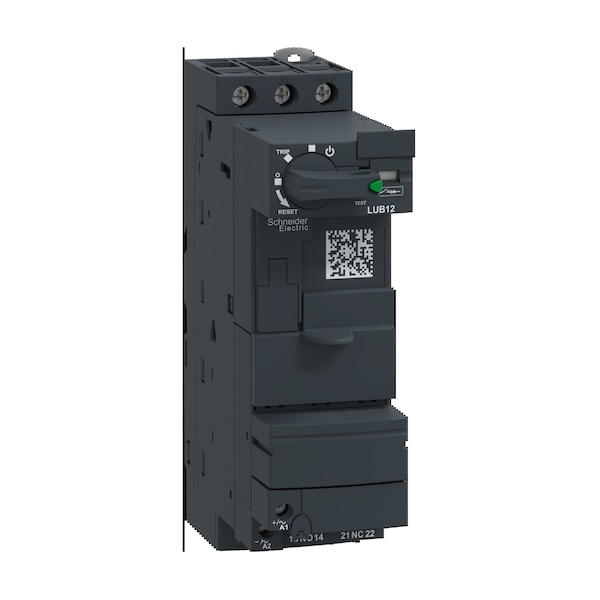

Motor Control Power Base, Non-Reversing, 1NC/1NO, 120V-600V AC, 3 P, Screw Clamp

  • Mfr # LUB12

  • Zoro # G1671485

product price:  $261.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V-600V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LUB12
Zoro #
G1671485
UPC #
785901222248
Country of Origin
France

Dimensions

Overall Depth
4.96 in
Overall Height
6.06 in
Overall Width
1.77 in

Details

Item
Motor Control Power Base
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V-600V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
ASEFA, ATEX Compliant, CCC, CE, CSA, EAC, REACH, RoHS, UL Listed
HP @ 3 Phase - 575V
10 hp
Enclosure Type
Open
HP @ 1 Phase - 230V
2
Features
Free of Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation
Operating Voltage
690V AC
Weight
0.9 kg
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
3 hp
Frequency
50/60 Hz
Horsepower @ Single Phase - 120V AC
1 1/2 hp
Starter Style
IEC
Compatible with Series
TeSys Ultra
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Maximum Voltage Rating
690V AC
Maximum Overload Relay Current Setting
12:00 AM
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Three Phase - 600V AC
10 hp
Horsepower @ Single Phase - 240V AC
2 hp
Operating Altitude
6561.68 ft (2000 m)
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Safe Separation Of Circuit
400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Mechanical Durability
15 Mcycles
Non-Dissipating Shock Wave
1 kV serial mode 24 to 240 V AC IEC 60947-6-2; 1 kV serial mode 48 to 220 V DC IEC 60947-6-2; 2 kV common mode 24 to 240 V AC IEC 60947-6-2; 2 kV common mode 48 to 220 V DC IEC 60947-6-2
Conventional Free Air Thermal Current
12 A
Rated Insulation Voltage
690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
Maximum Operating Rate
3600 cyc/h
Utilisation Category
AC-43; AC-44; AC-41
Immunity To Radioelectric Fields
10 V IEC 61000-4-6
Tightening Torque
Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm)
Suitability For Isolation
Yes
Protective Treatment
TH IEC 60068
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Fixing Mode
Clipped DIN rail; Screw-fixed plate)
Vibration Resistance
2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27
Shock Resistance
10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
Compatibility Code
LUB
Heat Dissipation
2 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.7 W control circuit with LUCM
Typical Current Consumption
130 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 140 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 150 mA 24 V DC I maximum while closing with LUCM; 280 mA 110 to 220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 110 to 240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 35 mA 110 to 220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 35 mA 110 to 240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 35 mA 48 to 72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 35 mA 48 to 72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 60 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 70 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 70 mA 24 V DC I rms sealed with LUCM
IP Degree Of Protection
IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone)
Resistance To Radiated Fields
9.14 V/m (10 V/m) 3 IEC 61000-4-3
Connections - Terminals
Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) flexible without cable end
Resistance To Fast Transients
2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
Auxiliary Contacts Type
Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1
Operating Time
35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit; 50 ms Greater than or Equal to 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 75 ms closing with LUCM control circuit
Resistance To Electrostatic Discharge
8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
Rated Operational Current
12 A Less than or Equal to 440 V; 12 A 500 V; 9 A 690 V
Control Circuit Voltage
24 V AC 50/60 Hz; 24 V DC; 48 to 72 V AC 50/60 Hz; 48 to 72 V DC; 110 to 240 V AC 50/60 Hz; 110 to 220 V DC
Fire Resistance
1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12
Rated Service Breaking Capacity
50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V
Immunity To Voltage Dips
70% / 500 ms IEC 61000-4-11
Rated Impulse Withstand Voltage
6 kVIEC 60947-6-2
Immunity To Microbreaks
3 ms control circuit
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-13 Degrees F
Current AC
12:00 AM

Description

TeSys U standard power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
