- Item

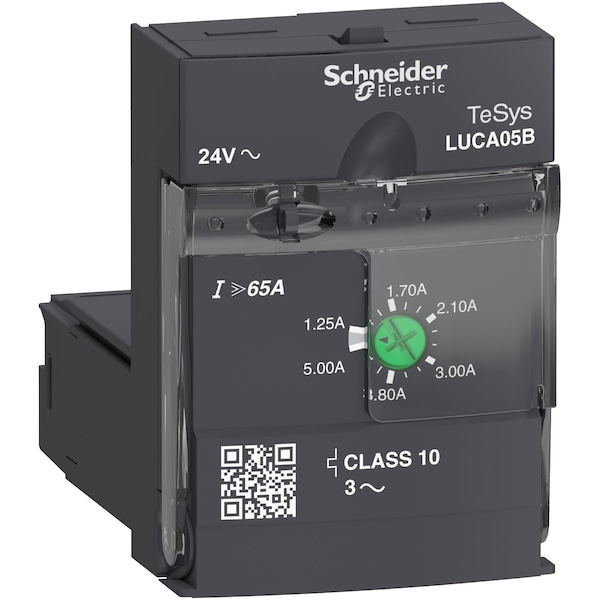

- Motor Starter Control Unit
- Coil Voltage
- 24V AC
- Standards
- EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
- Features
- Manual reset; Protection against overload and short-circuit; Earth fault protection; Protection against phase failure and phase imbalance; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
- Weight
- 0.135 kg
- Operating Voltage
- 690V AC
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Device Short Name
- LUCA
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Protective Treatment
- TH IEC 60068
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
- Operating Altitude
- 6561.68 ft (2000 m)
- Thermal Protection Adjustment Range
- 1.25-5 A
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Utilisation Category
- AC-43, AC-41, AC-44
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Operating Time
- 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB12 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit
- Product Name
- TeSys Ultra
- Range of Product
- TeSys Ultra
- Heat Dissipation
- 2-2 W control circuit with LUB12, 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38
- Immunity To Microbreaks
- 3 ms
- Typical Current Consumption
- 140 mA 24 V AC I maximum while closing with LUB12, 220 mA 24 V AC I maximum while closing with LUB32, 220 mA 24 V AC I maximum while closing with LUB38, 70 mA 24 V AC I rms sealed with LUB12, 90 mA 24 V AC I rms sealed with LUB32, 90 mA 24 V AC I rms sealed with LUB38
- Ambient Air Temperature For Storage
- -40-85°C
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Fixing Mode
- plug-in (front face)
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
- Thermal Overload Class
- class 10 40-60 Hz -25-70°C IEC 60947-6-2, class 10 40-60 Hz -25-70°C UL 508
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
- Control Circuit Voltage Limits
- 20...26.5 V AC 24 V in operation, 14.5 V AC 24 V drop-out
- Fire Resistance
- 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12
- Compatibility Code
- LUCA
- Motor Power KW
- 1.5 kW 400 to 440 V AC 50/60 Hz; 2.2 kW 500 V AC 50/60 Hz; 3 kW 690 V AC 50/60 Hz
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- IP Degree Of Protection
- IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
- Phase Failure Sensitivity
- Yes
- Rated Insulation Voltage
- 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
- Main Function Available
- Manual reset; Protection against overload and short-circuit; Earth fault protection; Protection against phase failure and phase imbalance
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Control Circuit Voltage
- 24 V AC
- Compatible Manufacturer Model Number
- LUB12, LUB32, LUB38, LUB120, LUB320, LUB380, LU2B12B, LU2B32B
- Frequency
- 40 to 60 Hz
- Maximum Operating Temperature
- 70 Degrees C
- Maximum Overload Relay Current Setting
- 5A
- Reset Type
- Manual
- Phase
- Three
- Minimum Operating Temperature
- -25 Degrees C
