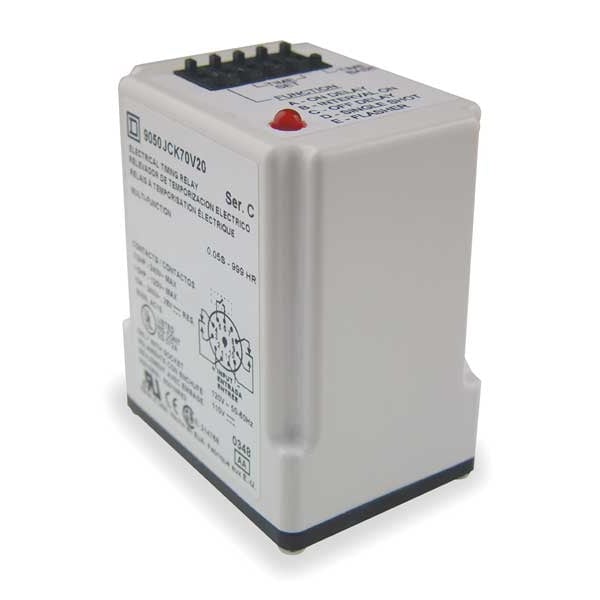

Multifunction Time Delay Relay, Octal, 8 Functions 24V AC, DPDT
Mfr # 9050JCK70V14
Zoro # G1584177
CAD Available
product price: $164.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Delay Function
Interval, On Delay, On/Off Delay, One Shot, One Shot (Falling Edge), Repeat Cycle, Trigger On Delay Off Delay, Watchdog
Number of Delay Functions
8
Minimum Time Setting
0.5 sec
Maximum Time Setting
999 hr
Base Shape
Octal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9050JCK70V14
Zoro #
G1584177
UPC #
785901053897
Country of Origin
United States
Dimensions
Overall Height - Relay
4.1 in
Depth
91 mm
Overall Depth
3.55 in
Body Depth
2.88 in
Body Height
2.38 in
Body Width
1.75 in
Description
Multi-Function Time Delay Relay, Adjustment Method Dip Switch, Base Shape Octal, Coil Voltage 24V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 8, Delay Function Interval, On Delay, On/Off Delay, One Shot, One Shot (Falling Edge), Repeat Cycle, Trigger On Delay Off Delay, Watchdog, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 24V AC, Minimum Time Setting 0.5 sec
