  15. Mushroom Head Push Button, 30 mm, SPDT, Red

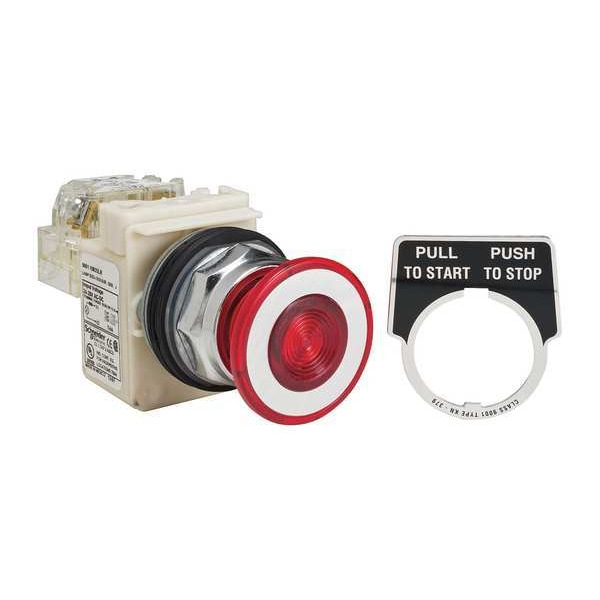

Schneider Electric Mushroom Head Push Button, 30 mm, SPDT, Red 9001KR9P35LRRH13 - main

Mushroom Head Push Button, 30 mm, SPDT, Red

  • Mfr # 9001KR9P35LRRH13

  • Zoro # G6374033

product price: $301.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR9P35LRRH13
Zoro #
G6374033
UPC #
785901034247
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
41 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Maintained Action Release
Push/Pull
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Basic Material
Metal
Bezel
Chrome Plated Metal
Contact Form
SPDT
Replacement Lamp
Mfr. No. 65088-052-10
Type of Operator
41mm Mushroom Head
Lamp Type
LED
Legend
Pull to Start/Push to Stop
Lamp Module Voltage
24V AC/DC
NEMA Contact Rating Designation
A600/Q600
Color
Red
Lamp Module Type
Full Voltage
Voltage
24 to 28V AC/DC
Number of Operators
1
Legend/Background Color
White/Black
IP Rating
IP66
Contact Rating
10A @ 600V AC
Legend Markings
Pull To Start Push To Stop
Contact Type
1NO/1NC
Lamp Voltage
24V AC/DC
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Features
Self-Grounding, Finger-Safe Terminals
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Bezel Material
Metal
Product Type
Push Button Operators
Contact Operation
standard
Device Presentation
complete product
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Light Source Colour
red
Bulb Base
BA 9s
Operator Additional Information
screw-on plastic
Light Block Supply
without supply
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Light Source
LED
Cap/Operator Or Lens Colour
red
Operator Position Information
2 positions
[Us] Rated Supply Voltage
24 to 28 V
Product Certifications
NEMA || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Product Or Component Type
illuminated push-button
Device Short Name
K
Contacts Type And Composition
1 C/O
Operator Profile
mushroom Ø 41 mm
Lamp Voltage - Maximum
28 V AC/DC
Operator Material
Plastic
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Legend Color
White
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Operator Voltage Rating - Maximum
600 V AC
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Legend Background Color
Black
Operating Temperature - Minimum
-22 Degrees F

Description

Mushroom Head Push Button, 30 mm, Maintained Action, 41mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Chrome Plated Metal, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Pull to Start/Push to Stop, Legend/Background Color White/Black, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
