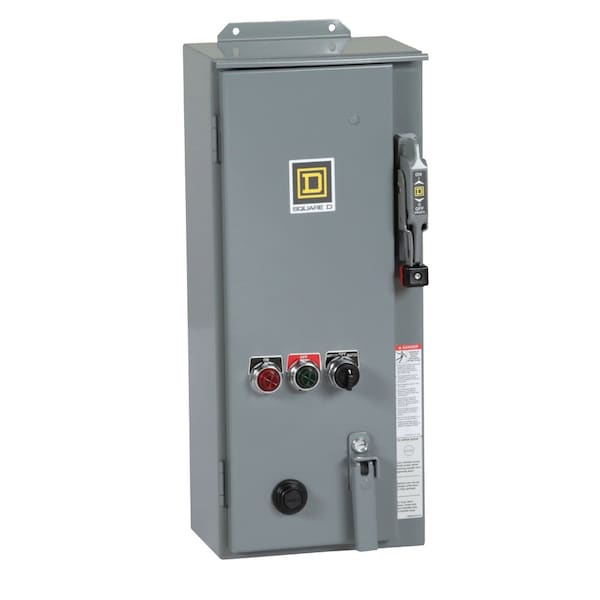

NEMA Combination Starter, NEMA, 120V AC

Mfr # 8538SCASP6
Zoro # G910442225

2,884.99

Free Shipping & Returns

Key Features

NEMA Size

Auxiliary Contact Form

2NO/2NC

Short Circuit Protection

Fusible Disconnect

Operator

Selector Switch

Trip Class

10/20

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 8538SCASP6
Zoro #: G910442225
UPC #: 785901875543
Country of Origin: Mexico

Dimensions

NEMA Size: 1
Overall Height: 24 in
Overall Width: 9.5 in
Overall Depth: 8.34 in

Details

Item: NEMA Combination Starter
Auxiliary Contact Form: 2NO/2NC
Short Circuit Protection: Fusible Disconnect
Operator: Selector Switch
Trip Class: 10/20
Operator Function: Hand/Off/Auto
Number of Poles: 3
Standards: CSA, UL Listed
Number of Auxillary Contacts: 4
Minimum Overload Relay Current Setting: 6 A
Includes Pilot Light: Yes
NEMA Enclosure Rating: 3R
Frequency: 50/60 Hz
Maximum Overload Relay Current Setting: 18 A
NEMA Enclosure Material: Steel
Reversing Capability: Non-Reversing
Overload Protection Type: Electronic
Coil Voltage: 110/120V AC
Starter Style: NEMA
Includes Auxiliary Contacts: Yes
For Fuse Class: Class H, Class K
Phase: Three
Series: 8538
Horsepower @ Three Phase - 480V AC: 10 hp
Horsepower @ Three Phase - 600V AC: 10 hp
Maximum Voltage Rating: 600V AC
Current AC: 27 A
Includes Control Transformer: No
Terminal Connection Type: Screw Clamp Terminals

Description

NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 27 A, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 3R, NEMA Size 1, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 2NO/2NC, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20, Horsepower @ Three Phase - 208V AC Not Applicable
