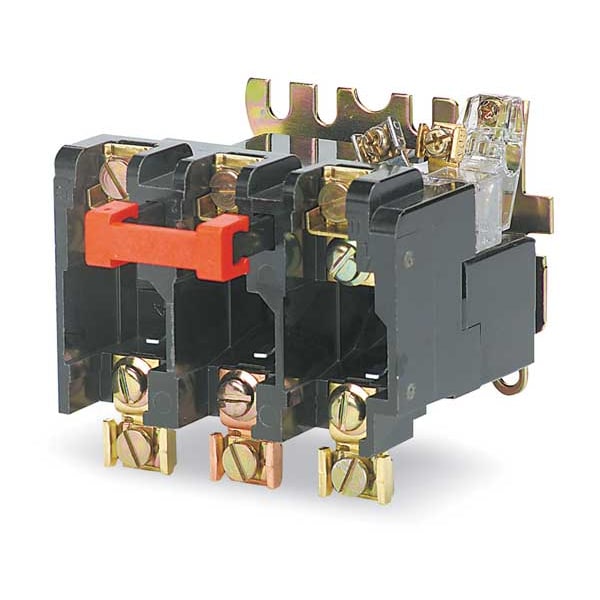

NEMA Overload Relay, 1NC, 135 A Max current, 600V AC
Mfr # 9065SDO15
Zoro # G7546691
product price:Â
$
421.99
/ea
Free Shipping & Returns
Key Features
Auxiliary Contact Form
1NC
Maximum Overload Relay Current Setting
135 A
Trip Class
30-Oct
NEMA Size
NEMA 4
Overload Protection Type
Thermal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9065SDO15
- Zoro #
- G7546691
- UPC #
- 785901850809
- Country of Origin
- Korea, Republic of
- Item
- NEMA Overload Relay
- Auxiliary Contact Form
- 1NC
- Maximum Overload Relay Current Setting
- 135 A
- Trip Class
- 30-Oct
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 600V AC
- Thermal Units Required
- Yes
- Trip Class - Overload
- Determined by Thermal Units Selected
- Use With - Contactors and Starters
- Mfr. Class 8536 Starters
- For Use With
- Class 8536 Starters
- Sensing Method
- Thermal
- Number of Poles
- 3
- Phase
- Three
- Thermal Overload Type
- melting alloy
- Product Destination
- starter
- Mounting Style
- Direct To Contactor
- Relay Style
- NEMA
- Includes Thermal Units
- No
- Compatible with Series
- 9065 Motor Logic Solid State Overload Relays
- Number of Required Thermals
- 3
- Reset Type
- No Reset
- Rated Operational Voltage
- 600 V AC
- Trip Clss
- 10/30
Description
NEMA Overload Relay, Auxiliary Contact Form 1NC, Maximum Overload Relay Current Setting 135 A, Maximum Voltage Rating 600V AC, NEMA Size 4, Number of Poles 3, Number of Required Thermals 3, Reset Type No Reset, Includes Thermal Units No, Mounting Style Direct To Contactor, Compatible with Series 9065 Motor Logic Solid State Overload Relays, Relay Style NEMA, Overload Protection Type Melting Alloy, Phase Three, Body Depth 5.74 in, Body Height 6.97 in, Body Width 5.31 in, Overall Height 6.97 in
