  13. Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

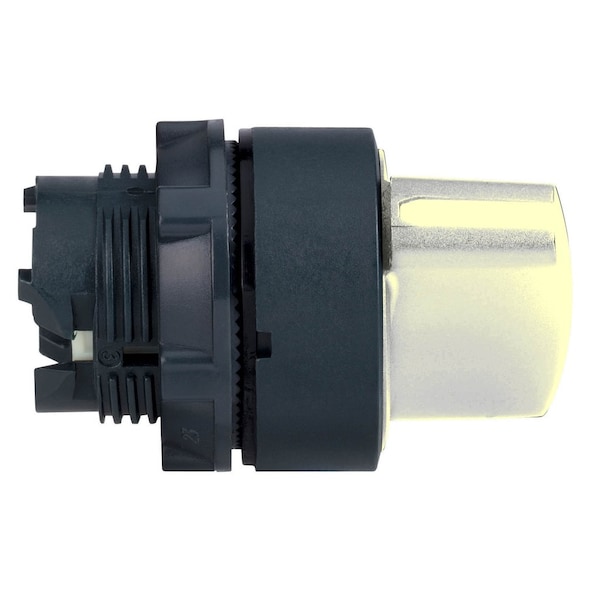

Schneider Electric Non-Illum Selector Swtch, 22mm, 2 Pos, Levr ZB5AD201 - main

Non-Illum Selector Swtch, 22mm, 2 Pos, Levr

  • Mfr # ZB5AD201

  • Zoro # G3001638

product price: $19.59
/ea

Key Features

Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
OX
Bezel Color
Black
Key Removal
No Key
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AD201
Zoro #
G3001638
UPC #
785901385660
Country of Origin
France

Dimensions

Size
22 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Cad Overall Depth
46 mm
Mounting Diameter
22 mm

Details

Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position A
OX
Bezel Color
Black
Key Removal
No Key
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
IP Rating
IP67, IP69, IP69K
Bezel Material
Plastic
Operator Color
White
Basic Material
Plastic
Item
Short-Handled Selector Switch
Key Number
No Key
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Operator Head Material
Plastic
Action
Maintained/Maintained
Cam
No Cam Included
Switch Operation @ Position C
No Third Position
Position
2
Type of Operator
Lever
Switch Operation @ Position B
XO
Color
White
Series
XB5
Hazardous Location Specification
Not Rated
Number of Positions
2
Switch Function @ 3rd Position
No Third Position
Operator Illumination
Non-Illuminated
Switch Function @ 4th Position
No Fourth Position
Operator Head Type
Short-Handled Knob
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
White
Head Type
standard
Device Presentation
basic element
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
CSA || GL || UL Listed || BV || DNV || LROS (Lloyds register of shipping)
Mechanical Durability
1000000 cycles
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
head for selector switch
Protective Treatment
TH
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Station Name
XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Ambient Air Temperature For Operation
-40-70°C
Operator Profile
white standard handle
Ik Degree Of Protection
IK06 IEC 50102
Operator Position Information
2 positions 90°
Device Short Name
ZB5
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Overvoltage Category
class II IEC 60536
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
round

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color White, Key Removal No Key, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
