  13. Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever

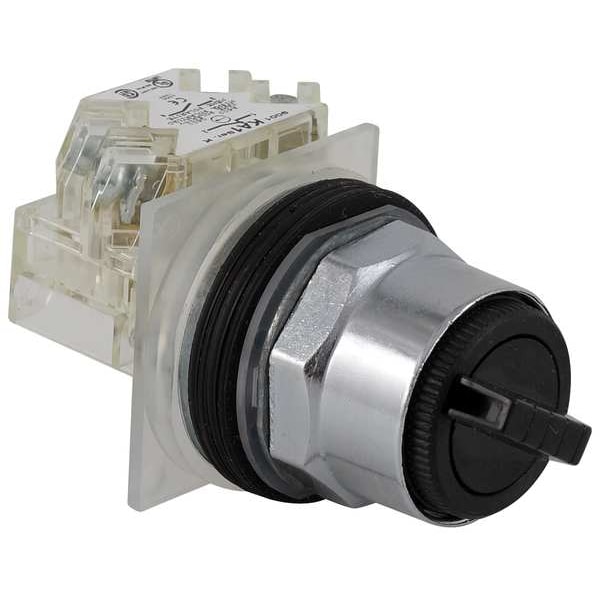

Schneider Electric Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever 9001KS34BH13 - main

Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever

  • Mfr # 9001KS34BH13

  • Zoro # G3363403

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
SPDT
Action
Maintained/Momentary
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS34BH13
Zoro #
G3363403
UPC #
785901861560
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
SPDT
Action
Maintained/Momentary
Operator Head Material
Polycarbonate
Cam
D
Color
Black
NEMA Rating
12, 13, 3, 3R, 4
Bezel Material
Metal
Position
2
Bezel Color
Chrome
Key Removal
No Key
Switch Operation @ Position B
OX
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Contact Rating
10A @ 600V AC
IP Rating
IP66
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position A
XO
Switch Operation @ Position C
No Third Position
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
9001K
Product Compatibility
9001KA1 side 2
Device Short Name
K
Contacts Type And Composition
1 C/O
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operator Profile
black standard knob, standard handle
Product Or Component Type
selector switch
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Connections - Terminals
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Device Presentation
complete product
Operator Position Information
2 positions
Return
right to left
Cam Profile
4
Cap/Operator Or Lens Colour
black
Switch Function @ 1st Position
Off
Switch Function @ 3rd Position
No Third Position
Hazardous Location Specification
Not Rated
Number of Positions
2
Operator Illumination
Non-Illuminated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Switch Function @ 4th Position
No Fourth Position
Operator Head Color
Black
Contact Block Material
Metal
Switch Function @ 2nd Position
Momentary
Operator Head Type
Short-Handled Knob

Description

Selector Switch, 30 mm, 2 Position, Maintained/Momentary Action, SPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP66, Cam D, Switch Operation @ Position A XO, Switch Operation @ Position B OX, Switch Operation @ Position C No Third Position
