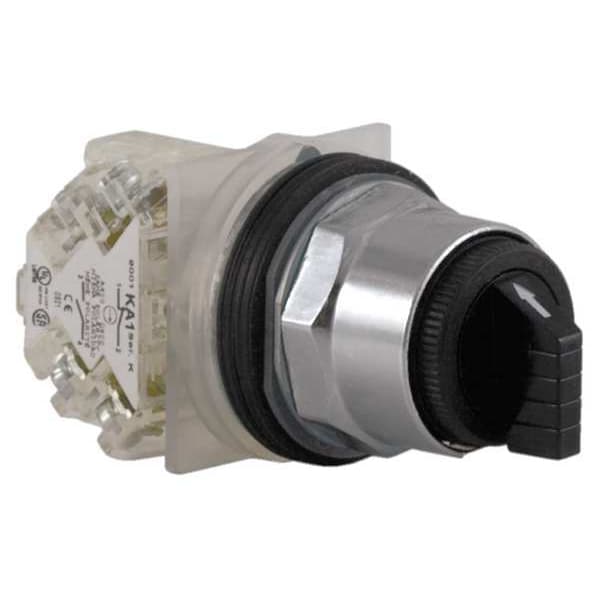

Schneider Electric Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever 9001KS42BH13 - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # 9001KS42BH13

  • Zoro # G6661207

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
SPDT
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KS42BH13
Zoro #
G6661207
UPC #
785901035039
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
SPDT
Action
Maintained/Maintained/Maintained
Operator Head Material
Polycarbonate
Cam
B
Color
Black
NEMA Rating
12, 13, 3, 3R, 4
Position
3
Bezel Material
Metal
Bezel Color
Chrome
Key Removal
No Key
IP Rating
IP65
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position A
OX
Switch Operation @ Position C
XO
Switch Operation @ Position D
No Fourth Position
Switch Operation @ Position B
XO
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Contact Rating
10A @ 600V AC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Cap/Operator Or Lens Colour
black
Connections - Terminals
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Cam Profile
2
Operator Position Information
3 positions
Product Or Component Type
selector switch
Operator Profile
black standard knob, standard handle
Product Certifications
CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Device Presentation
complete product
Contacts Type And Composition
1 C/O
Device Short Name
K
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operator Head Color
Black
Hazardous Location Specification
Not Rated
Switch Function @ 3rd Position
On
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operator Head Type
Short-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Number of Positions
3
Switch Function @ 2nd Position
Off
Operator Illumination
Non-Illuminated
Contact Block Material
Metal
Switch Function @ 1st Position
On

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, SPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam B, Switch Operation @ Position A OX, Switch Operation @ Position B XO, Switch Operation @ Position C XO
