  15. Non-Illuminated Multihead Operator, 22 mm, Rectangular

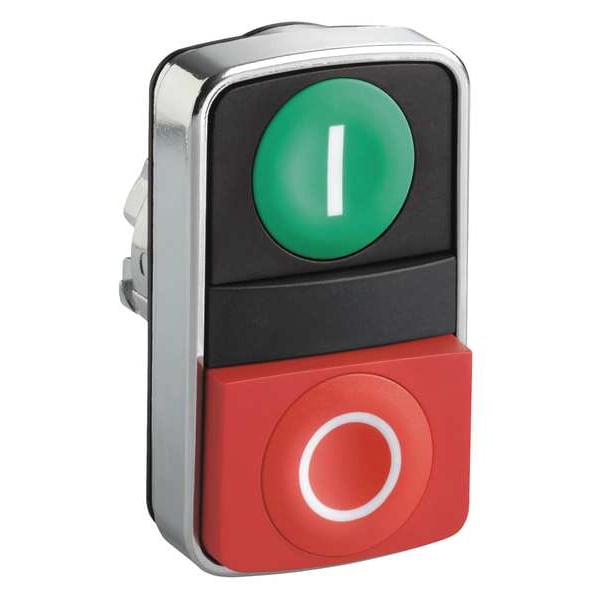

Schneider Electric Non-Illuminated Multihead Operator, 22 mm, Rectangular ZB4BL7341 - main

Non-Illuminated Multihead Operator, 22 mm, Rectangular

  • Mfr # ZB4BL7341

  • Zoro # G3542585

product price: $35.59
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BL7341
Zoro #
G3542585
UPC #
785901671671
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Mounting Diameter
22 mm
Overall Depth
1.38 in
Manufacturer Warranty Length
18 mo
Overall Width
1.18 in
Overall Height
1.97 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green; Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Legend/Background Color
White/Green, White/Red
Shape
Rectangular
NEMA Rating
13, 4X
Number of Heads
2
Legend
I, O
Type of Operator
(1) Extended Button, (1) Flush Button
IP Rating
IP66, IP67, IP69, IP69K
Series
XB4
Features
Visually Distinct at a Distance, High Brightness, Double Head
Bezel Material
Metal
Number of Operators
2
Product Certifications
GL || CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || BV
Operator Profile
1 flush - 1 projecting push-buttons, green flush, I white) || red projecting, O white)
Ip Degree Of Protection
IP69 IEC 60529 || IP66 IEC 60529 || IP69K
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Ambient Air Temperature For Operation
-40-70°C
Electrical Shock Protection Class
class I IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage
-40-70°C
Mechanical Durability
1000000 cycles
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Device Short Name
ZB4
Shape Of Signaling Unit Head
rectangular
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Or Component Type
head for double-headed push-button
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
Device Presentation
basic element
Head Type
standard
Ik Degree Of Protection
IK03 IEC 50102
Operators Description
green ''I'' - red ''O''
Product Type
Multihead Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Legend Background Color
Green/Red
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Legend Color
White
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Not Rated

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Extended Button, (1) Flush Button, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend I, O, Legend/Background Color White/Green, White/Red
