  13. Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector

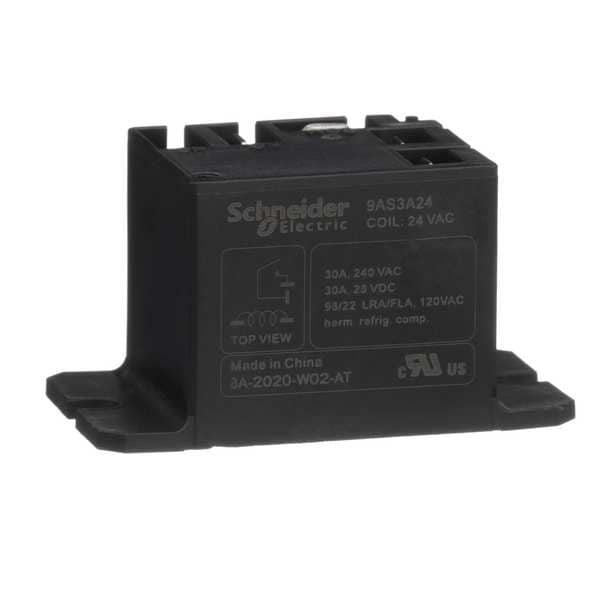

Schneider Electric Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector 9AS3A24 - main

Panel Flange, Enclosed Power Relay, 30 A, 4 Pins, Faston Connector

  • Mfr # 9AS3A24

  • Zoro # G1709985

product price: $13.79
/ea

Key Features

Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Number of Pins
4
Coil Voltage
24V AC
Current Rating
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9AS3A24
Zoro #
G1709985
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.1 in
Dimensions
1.10"H, 1.06"W, 1.95"D
Body Height
1.97 in
Body Depth
0.11 in
Body Width
1.08 in
Overall Depth
1.09 in
Depth
1.09 in (27.8 mm)
Width
1.07 in (27.3 mm)

Details

Item
Enclosed Power Relay
Mounting Style
Panel Flange
Electrical Connection
Faston Connector
Number of Pins
4
Coil Voltage
24V AC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V
Contact Rating (DC)
30 A @ 28V
Contact Material
Silver Alloy
Hz
50/60
Coil Rating
2.8VA, 1.0W
Contact Amp Rating (Resistive)
30A @ 240VAC/28VDC
Number of Poles
1
Features
Class F Coil Insulation
Power Consumption - Relay
2.8 VA
Standards
UL60947-4-1
Contact Amp Rating (Inductive)
22A @ 120V AC-8a
Power Consumption
2.6 VA
Dielectric Strength
1,500V Between Contacts with Micro Disconnection, 2,500V AC Between Coil and Contact
Series
9A Power Series
Sealing
Sealed
Response Time
20 msec
Motor Rated
Yes
Maximum Operating Temperature
104 Degrees F
Electrical Operating Durability
100,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Coil Resistance
100 ohm
Horsepower @ 120V AC
1 hp
Input Voltage
24V AC
Operating Current
10 A at 277V (Ballast), 22 A at 20V AC (Full Load), 24 A at 240V AC (Resistive Load), 30 A at 240V AC, 30 A at 28V DC (Resistive Load), 98 A at 120V AC (Locked Rotor)
Maximum Switching Voltage
277V AC, 28V DC
Frequency
50/60 Hz
Horsepower @ 240V AC
2 hp
Mechanical Operating Durability
10,000,000
For Use With
Alarm Systems, HVAC Equipment, Motor Controls
Minimum Operating Temperature
-40 Degrees F
Weight
1.12 oz
Switching Voltage
277 V AC || 28 V DC
Protection Category
RT III
Dielectric Voltage
2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
Release Time
10 ms
Operating Position
Any position
Drop-out Voltage Threshold
>= 0.2 Uc
Control Circuit Voltage Limits
0.85...1.1 Uc
Rated Power in HP
1 hp at 125 V AC; 2 hp at 250 V AC
Switch Function
SPST
Rated Insulation Voltage
320 V
Product Certifications
UL
Vibration Resistance
+/- 0.75 mm 10 to 55 Hz operating; +/- 0.75 mm 10 to 55 Hz not operating
Product Range
Harmony
Minimum Switching Capacity
5 W at 1 A, 5 V DC; 12 VA at 1 A, 12 V AC
Operate Time
20 ms
Load Current
30 A
Shock Resistance
10 gn operating; 100 gn not operating
Connections Terminals
Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm; Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
Rated Power in VA
470 VA at 240 V on pilot duty
Pollution Degree
3
[Uc] control circuit voltage
24 V AC 50-60 Hz
Average Resistance
100 Ohm at 73°F (23°C) +/- 10 %
Contact Composition
NO
Ambient Temperature Range - Storage
-40 to 185°F (-40 to 85°C)
Network Frequency
50-60 Hz
ambient temperature range - operational
-40 to 104°F (-40 to 40°C)
Rated Impulse Withstand Voltage
4 kV 1.2/50µs
Status Indicator
No Indicator

Description

Enclosed Power Relay, Coil Voltage 24V AC, Contact Form SPST-NO, Electrical Connection Faston Terminal, Number of Pins 4, Sealing Sealed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 277V, 22 A @ 20V, 24 A @ 240V, 30 A @ 240V, 98 A @ 120V, Contact Rating (DC) 30 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Panel Flange, Body Depth 0.11 in, Body Height 1.97 in, Body Width 1.08 in, Coil Resistance 100 ohm, Contact Material Silver Alloy
