  15. Pendant Enclosure, 22mm, 12 Holes, IP65

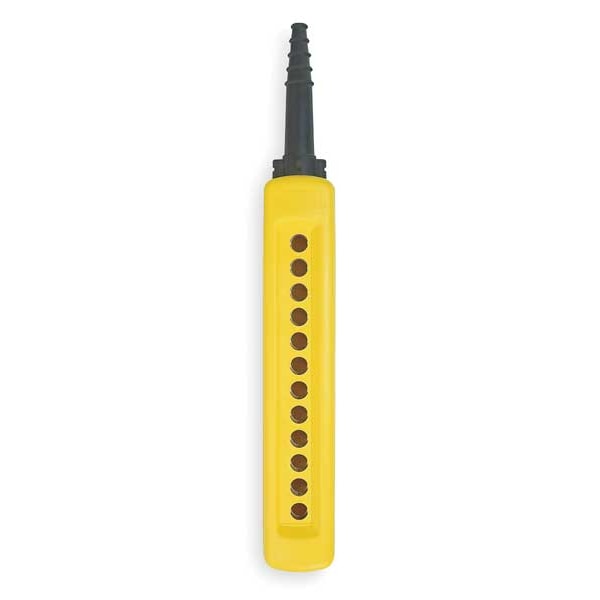

Schneider Electric Pendant Enclosure, 22mm, 12 Holes, IP65 XACA12H7 - main

Pendant Enclosure, 22mm, 12 Holes, IP65

  • Mfr # XACA12H7

  • Zoro # G1796925

product price: $348.99
/ea
Free Shipping & Returns

Key Features

Type of Operator
double insulated
Color
Yellow
NEMA Rating
4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA12H7
Zoro #
G1796925
UPC #
785901146278
Country of Origin
Czechia

Dimensions

Hole Size
22 mm
Rubber Sleeve Cable Entry Size - Maximum
1.02 in
Compatible Panel Cutout Diameter
22 mm
Rubber Sleeve Cable Entry Size - Minimum
0.31 in

Details

Item
Pendant Enclosure
Type of Operator
double insulated
Color
Yellow
NEMA Rating
4, 4X
Standards
CSA, EN/IEC, IP65, RoHS, UL Listed
Material
Plastic
Cable Entry
0.31 in to 1.02 in
Number of Holes
12
Includes
Cable Sleeve
Enclosure Material
polypropylene
Operator Color
yellow
IP Rating
IP65
Vibration Resistance
15 gn 10 to 500 Hz)IEC 60068-2-6
IK Degree Of Protection
IK08 EN 50102
Product Certifications
UL; CSA; CCC; GOST
Number Of Cut-Out
12 cut-outs
Shock Resistance
100 gn IEC 60068-2-27
Enclosure Type
Empty enclosure
Vertical Operator Cut-Out Centre
1.18 in (30 mm)
Mechanical Durability
1000000 cycles
Electrical Circuit Type
Control circuit
Product Or Component Type
Pendant control station
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Overvoltage Category
Class II IEC 61140
Guard Rail
Without
Protective Treatment
TH
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Compatible with Series
XAC
NEMA Enclosure Rating
1, 4, 4X, 5
Compatible with Brand
Schneider
Cable Entry Type
Rubber Sleeve

Description

Pendant Enclosure, Number of Holes 12, Cable Entry 0.31 in to 1.02 in, NEMA Rating 4, 4X, Color Yellow, Hole Size 22 mm, Material Plastic, Includes Cable Sleeve, Standards CSA, EN/IEC, IP65, RoHS, UL Listed
