  13. Push Button Control Station, 3NO/3NC, 30mm
Shop All Push Button Control Stations
Schneider Electric

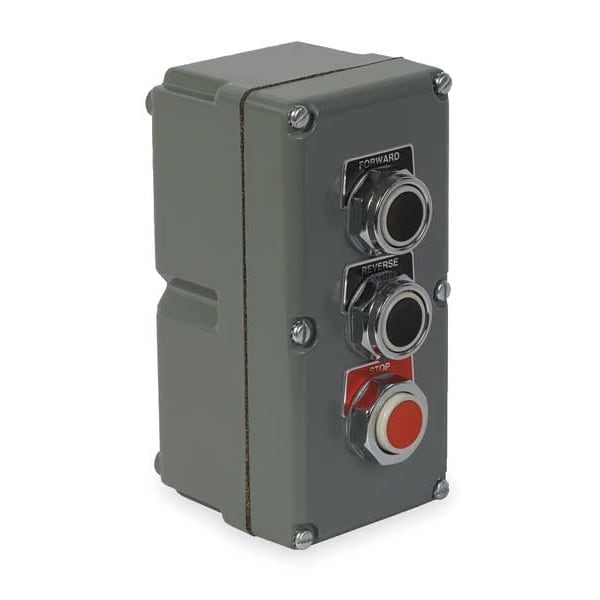

Push Button Control Station, 3NO/3NC, 30mm

product price: $394.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contact Form 3NO/3NC
  • Number of Gangs 1
  • Legend Forward/Reverse/Stop
  • Type of Operator Push Button/Push Button/Push Button
  • Number of Pilot Lights 0
See all product information

Product Information

Dimensions

Size 30 mm
Width 3.58 in
Height 3.53 in
Depth 7.5 in
Hub Size - Maximum 3/4 in
Panel Cutout Diameter 30 mm
Overall Height 7 in
Overall Depth 3.53 in
Overall Width 3.62 in
Manufacturer Warranty Length 18 mo

Details

Item Control Station
Contact Form 3NO/3NC
Number of Gangs 1
Legend Forward/Reverse/Stop
Type of Operator Push Button/Push Button/Push Button
Number of Pilot Lights 0
Number of Operators 3
NEMA Rating 1, 13, 3, 4
Hub Style Dead-End
Series 9001K
Contact Rating 10A @ 600V AC, 2.5A @ 24V DC
Standards CE, CSA, UL Listed
For Use With indoor/outdoor
Action Momentary/Momentary/Momentary
Mechanical Interlock No
Hub 3/4 in NPT
Enclosure Material Zinc
Mounting Wall
NEMA Contact Rating Designation A600/Q600
Enclosure Color Gray
Green Environmental Attribute RoHS 2011/65/EU Compliant
Operator Color (2) Black, Red
IP Rating IP66
Number of Speeds 1
Terminal Connection screw-clamp terminals
Mounting Style Surface
Rated Operational Current AC 10 A
Product Or Component Type Complete control station
NEMA Degree Of Protection NEMA 3/4/13
Control Station Composition 2 push-buttons 3 NO + 3 NC FORWARD-REVERSE-STOP
Contact Block Name KA1
Provided Equipment Contact block; Legend plate
Enclosure/Cubicle Description Surface mounting
Hazardous Location Specification Class II, Div 2, Group G, Class III, Div 1 and 2
NEMA Enclosure Rating 13, 3, 4
Product Type Control Station
Operating Temperature - Minimum -13 Degrees F
Includes Mechanical Interlock No Mechanical Interlock Included.
Operator Configuration (3) Push Buttons
AC Contact Rating 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Operating Temperature - Maximum 158 Degrees F

Description

Control Station, Number of Operators 3, Number of Pilot Lights 0, Size 30 mm, Legend Forward/Reverse/Stop, Type of Operator Push Button/Push Button/Push Button, Action Momentary/Momentary/Momentary, Operator Color (2) Black, Red, Contact Form 3NO/3NC, Mechanical Interlock No, NEMA Rating 1, 13, 3, 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.53 in, Width 3.58 in, Depth 7.5 in
