- Item

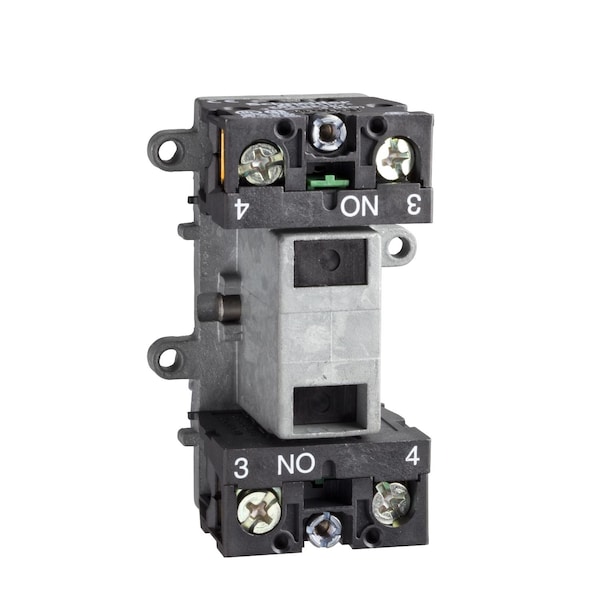

- Contact Block
- Standards
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14
- Ambient Air Temperature For Operation
- -25-70°C
- Product Compatibility
- XACA
- Ambient Air Temperature For Storage
- -40-70°C
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Contact Block Type
- double
- Product Or Component Type
- contact block
- Contacts Type And Composition
- 1 NO + 1 NC
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Terminals Description Iso N°1
- (13-14)NO || B
- Contact Operation
- slow-break
- Type Of Operator
- latching
- Electrical Circuit Type
- control circuit
- Maximum Resistance Across Terminals
- 25 MOhm
- Connections - Terminals
- screw clamp terminals, 1 x 0.5 to 1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5 to 2 x 1.5 mm² with cable end
- Terminals Description Iso N°2
- (11-12)NC || B
- Mounting Of Block
- front mounting
- Shock Resistance
- 100 gn IEC 60068-2-27
- Operating Force
- 13 N
- Contact Block Application
- single speed
- Component Name
- XENG
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Overvoltage Category
- class II IEC 61140
- Conventional Enclosed Thermal Current
- 10 A
- Terminals Description ISO n°1
- (13-14)NO; B
- Terminals Description ISO n°2
- (11-12)NC; B
- Terminals Description ISO n°1
- (13-14)NO; B
- Terminals Description Iso N°2
- (11-12)NC || B
- Terminals Description Iso N°1
- (13-14)NO || B
- Terminals Description ISO n°2
- (11-12)NC; B
- Includes Mounting Block
- Mounting Block Included
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V
- AC Contact Rating
- 1.2 A @ 600 V, 3 A @ 240 V
- Compatible with Series
- XACA
