- MFR #
- ZBE1016P
- Zoro #
- G7654755
- UPC #
- -
- Country of Origin
- France
- Item

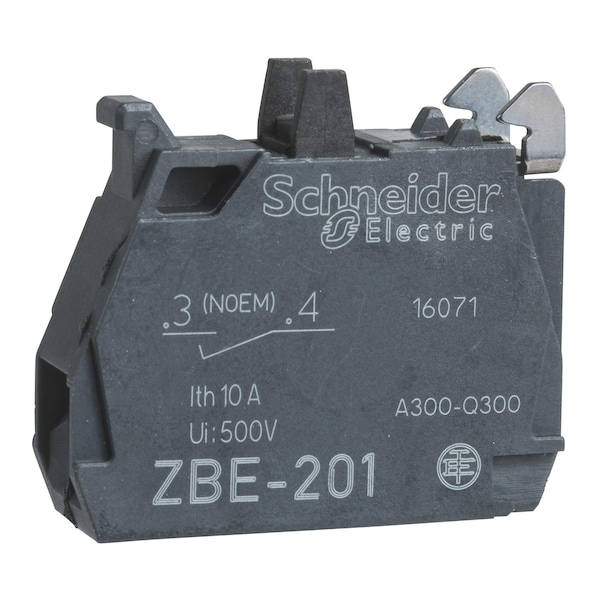

- Gold Flashed Contact Block W/Dust Protec
- Standards
- CSA C22.2 No 14, UL 508, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, JIS C8201-1
- Operating Travel
- 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Mechanical Durability
- 10000000 cycles
- Mounting of Block
- front mounting
- Range of Product
- Harmony XB4, Harmony XB5
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Contact Block Type
- single
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Contacts Material
- gold flashed (Ag/Ni/Au) contacts
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Shape of Screw Head
- cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Device Short Name
- ZBE
- Ambient Air Temperature For Storage
- -40-70°C
- Operating Force
- 2.3 N NO changing electrical state
- Product or Component Type
- contact block
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Ambient Air Temperature For Operation
- -40-70°C
- Protective Treatment
- TH
- Electrical Composition Code
- C9 3 ), M5 2 ), M9 2 )
- Positive Opening
- without
- Ip Degree of Protection
- IP5X
- Contacts Type And Composition
- 1 NO
- Contact Operation
- slow-break
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Usage
- low power switching contacts
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Ip Degree Of Protection
- IP5X
- Mounting Of Block
- front mounting
- Shape Of Screw Head
- cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Product Or Component Type
- contact block
- Product Certifications
- CSA || BV || GL || GOST || LROS (Lloyds register of shipping) || DNV || UL || CCC
