  15. Pendent Contact Block, 1NC+2NO EarlyClose

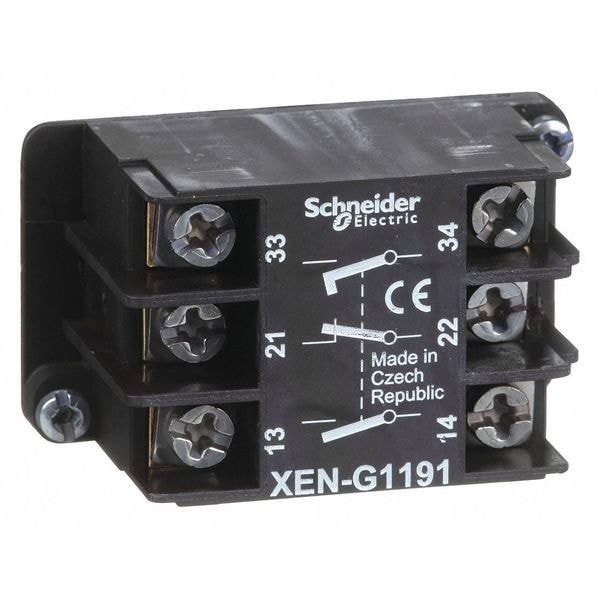

Schneider Electric Pendent Contact Block, 1NC+2NO EarlyClose XENG1191 - main

Pendent Contact Block, 1NC+2NO EarlyClose

  • Mfr # XENG1191

  • Zoro # G1497377

product price: $36.65
/ea

Key Features

Contact Form
2NO/1NC
Color
Black
Size
22 mm
For Use With
Schneider XACA, XACA9 Head
Contact Rating
10A @ 600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XENG1191
Zoro #
G1497377
UPC #
785901645702
Country of Origin
Czechia

Dimensions

Size
22 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Contact Block
Contact Form
2NO/1NC
Color
Black
For Use With
Schneider XACA, XACA9 Head
Contact Rating
10A @ 600V AC/DC
Standards
CSA C22.2 No.14, EN/IEC 60947-5-1, UL 508
Action
Momentary/Make Before Break
Terminal Connection
Screw/Clamp
NEMA Contact Rating Designation
A600/Q600
Application
Pendent Station
Voltage
600 V
Mounting
front mounting
Type Of Operator
spring return
Rated Insulation Voltage
600 V 3)IEC 60947-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Connections - Terminals
Screw clamp terminals, 1 x 0.5 to 1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5 to 2 x 1.5 mm² with cable end
Terminals Description ISO n°1
(21-22)NC; (33-34)NO_CL; (13-14)NO
Rated Operational Power in W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C; 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C; 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Shock Resistance
100 gn IEC 60068-2-27
Short-Circuit Protection
10 A fuse protection cartridge gG
Conventional Enclosed Thermal Current
10 A
Component Name
XENG
Contact Type and Composition
1 NC + 2 NO
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Mechanical Durability
1000000 cycles
Product Compatibility
XACA; XACA9 to head
Maximum Resistance Across Terminals
25 MOhm
Overvoltage Category
Class II IEC 61140
Operating Force
18 N
Vibration Resistance
15 gn 10 to 500 Hz)IEC 60068-2-6
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Contact Block Application
2-speed
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Contact Operation
Slow-break; Staggered
Contact Block Type
Single
Electrical Circuit Type
Control circuit
Terminals Description ISO n°1
(21-22)NC; (33-34)NO_CL; (13-14)NO
Compatible Operator
Pilot Light, Push Button
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Includes Mounting Block
Mounting Block Included
Terminal Connection Type
Screw Clamp Terminals
Compatible with Series
XACA, XACA9
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V
Switch Action
Momentary/Make Before Break

Description

Contact Block, Contact Form 2NO/1NC, Contact Rating 10A @ 600V AC/DC, For Use With Schneider XACA, XACA9 Head, Action Momentary/Make Before Break, 22 mm, Application Pendent Station, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, EN/IEC 60947-5-1, UL 508
