  13. Pilot Light, 230 to 240VAC, Ylw, LED Lamp
Shop All Indicator Lights
Schneider Electric

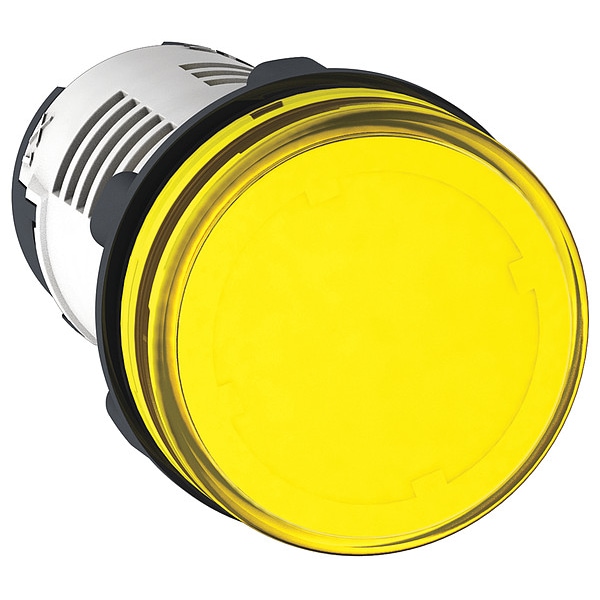

Pilot Light, 230 to 240VAC, Ylw, LED Lamp

product price: $37.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 230 to 240 V AC
  • Color Yellow
  • Lamp Type LED
  • Shape Round
  • Terminal Connection Screw Clamp
See all product information

Product Information

Dimensions

Size 22 mm
Overall Height 1.14 in
Panel Cutout Diameter 22 mm
Overall Width 1.14 in
Manufacturer Warranty Length 18 mo
Overall Depth 2.13 in

Details

Item Pilot Light
Voltage 230 to 240 V AC
Color Yellow
Lamp Type LED
Shape Round
Terminal Connection Screw Clamp
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Plastic
Standards REACH, RoHS, WEEE
Includes Pilot Lights With Integral LED
Replacement Lamps Integrated
NEMA Rating 12, 4
Body Material Plastic
IP Rating IP20, IP65
Lamp Voltage 230V AC
Lens Color Yellow
Series XB7
Includes Lens Lens Included
NEMA Enclosure Rating 12, 4
Lamp Color Yellow
Voltage Rating - Maximum 230 V AC

Description

Pilot light, Voltage 230 to 240 V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Fresnel, Lamp Voltage 230V AC, Replacement Lamps Integrated, Body Material Plastic, NEMA Rating 12, 4, IP Rating 20, 65, Includes Pilot Lights With Integral LED, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508
