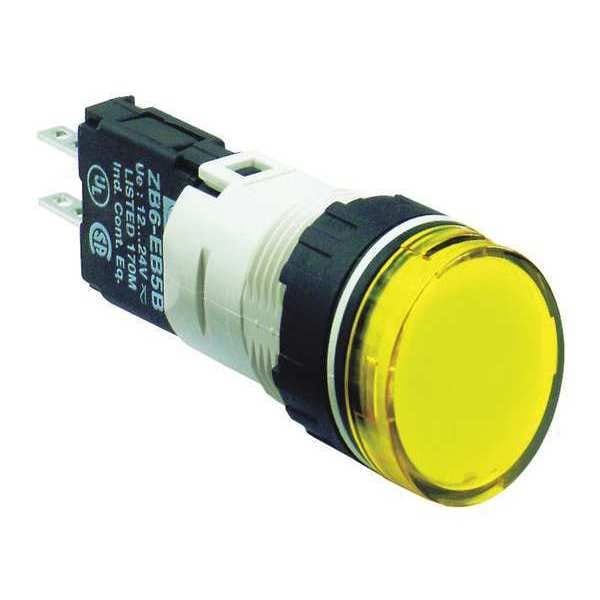

Schneider Electric Pilot Light Complete, LED, Yellow XB6AV5BB - main

Pilot Light Complete, LED, Yellow

  • Mfr # XB6AV5BB

  • Zoro # G0105065

product price: $22.59
/ea

Key Features

Voltage
24V AC/DC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6AV5BB
Zoro #
G0105065
UPC #
785901356523
Country of Origin
United States

Dimensions

Size
16 mm
Height
18 mm
Width
18 mm
Length
57 mm
Mounting Diameter
0.63 in (16 mm)
Depth
2.24 in (57 mm)
Overall Height
0.71 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.24 in
Overall Width
0.71 in
Panel Cutout Diameter
16 mm

Details

Item
Pilot Light
Voltage
24V AC/DC
Color
Yellow
Lamp Type
LED
Shape
Round
Terminal Connection
Faston Connector
Contact Form
(+ -)PL
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Lamp Module Type
Full Voltage
Basic Material
Plastic
Standards
CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
Replacement Lamps
4VW69
IP Rating
IP65
Lamp Voltage
24V AC/DC
NEMA Rating
1, 12
Body Material
Plastic
Type
Steady Signal
Product Or Component Type
Complete pilot light
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Rated Supply Voltage
12 to 24 V AC/DC
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Electromagnetic Emission
Class B EN 55011
Light Block Supply
Direct
Supply Voltage Limits
6 to 30 V AC/DC
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Bulb Base
Integral LED
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
IP Degree Of Protection
IP65 IEC 60529
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class
Class II IEC 61140
Signalling Type
Steady
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Protective Treatment
TC
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Product Certifications
GOST; CCC; CSA; UL
Operating Position
Any position
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Resistance To Fast Transients
2 kV IEC 61000-4-4
Current Consumption
15 mA
Lamp Color
Yellow
Lamp Voltage - Maximum
24 V AC/DC
Includes Lamp Module
Lamp Module Included
Includes Lens
Lens Included
Includes Push-To-Test
No Push-To-Test Included
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Voltage Rating - Maximum
24 V AC/DC
Series
XB6
NEMA Enclosure Rating
13, 4, 4X
Lens Color
Yellow

Description

Pilot Light, Voltage 24V AC/DC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Faston Connector, Lens Material Plastic, 16 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Smooth, Lamp Voltage 24V AC/DC, Replacement Lamps 4VW69, Body Material Plastic, NEMA Rating 1, 12, IP Rating IP65, Standards CCC, CSA, GOST, REACH, RoHS, UL Listed, WEEE
