  15. Pilot Light Head, White, LED

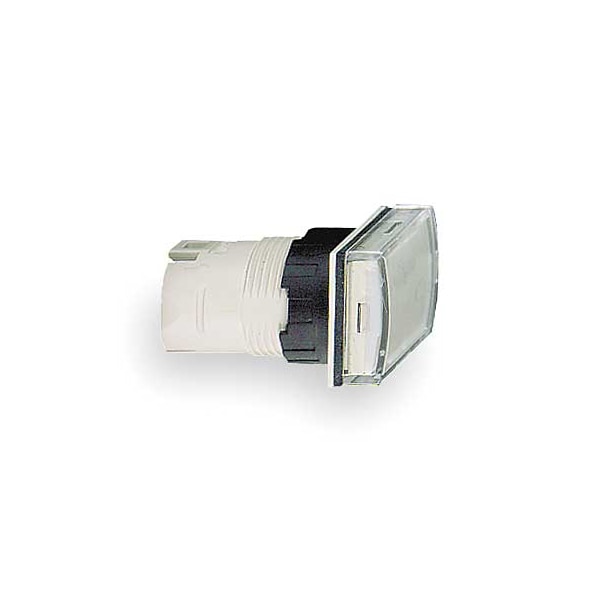

Schneider Electric Pilot Light Head, White, LED ZB6DV1 - main

Pilot Light Head, White, LED

  • Mfr # ZB6DV1

  • Zoro # G2790934

product price: $7.99
/ea

Key Features

Color
White
Lamp Type
LED
Shape
Rectangular
Lens Material
Plastic
Bezel
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6DV1
Zoro #
G2790934
UPC #
785901363361
Country of Origin
Mexico

Dimensions

Size
16 mm
Compatible Panel Cutout Diameter
16 mm
Mounting Diameter
0.63 in (16 mm)

Details

Item
Pilot Light Head
Color
White
Lamp Type
LED
Shape
Rectangular
Lens Material
Plastic
Bezel
Plastic
Lens Type
Smooth
Basic Material
Plastic
Suggested Lamp Type
Mfr. Series ZB6E Lamp Modules
IP Rating
IP65
Material
Plastic
Standards
CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C4520, JIS C852, REACH, RoHS, UL 508
Body Material
Plastic
NEMA Rating
13, 4, 4X
Product Type
Pilot Light Head
Compatible Lamp Type
Integral LED Module
Compatible with Series
XB5
NEMA Enclosure Rating
13, 4, 4X
Light Head Material
Plastic
Product Certifications
GOST; CCC; UL; CSA
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Product Or Component Type
Head for pilot light
IP Degree Of Protection
IP65 IEC 60529
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Electrical Shock Protection Class
Class II IEC 61140
Product Compatibility
Integral LED
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Protective Treatment
TC

Description

Pilot Light Head, Size 16 mm, Color White, Shape Rectangular, Lens Type Smooth, Basic Material Plastic, NEMA Rating 13, 4, 4X, Lamp Type LED, Lens Material Plastic, Body Material Plastic, Suggested Lamp Type Mfr. Series ZB6E Lamp Modules, IP Rating IP65, Standards CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C4520, JIS C852, REACH, RoHS, UL 508
