  8. Pilot Light, LED, Green, 120V, Fresnel Lens

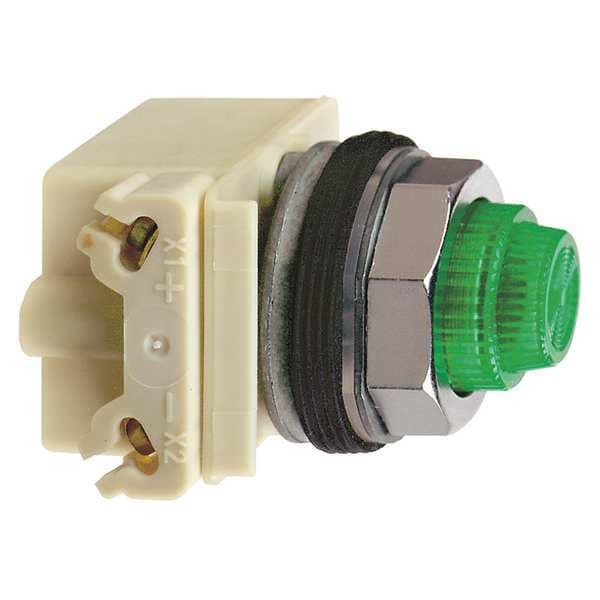

Schneider Electric Pilot Light, LED, Green, 120V, Fresnel Lens 9001KP38LGG31 - main

Pilot Light, LED, Green, 120V, Fresnel Lens

  • Mfr # 9001KP38LGG31

  • Zoro # G6342506

product price:  $122.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Lamp Type
LED
Color
Green
Shape
Round
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001KP38LGG31
Zoro #
G6342506
UPC #
785901640028
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Depth
1.65 in
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm
Overall Width
2.13 in
Overall Height
2.76 in

Details

Item
Pilot Light
Voltage
120V AC
Lamp Type
LED
Color
Green
Shape
Round
Terminal Connection
Screw Clamp
Lens Material
Plastic
Bezel
Chromium Plated Metal
Basic Material
Metal
Lens Type
Fresnel
Lamp Module Type
Full Voltage
Standards
REACH, RoHS, UL 508, WEEE
IP Rating
IP66
Lamp Voltage
120V AC
Body Material
Zinc Die Cast
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Body Finish
Chrome Plated
Lamp Voltage - Maximum
120 V AC/DC
Lamp Color
Green
Series
9001K
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 6
Includes Push-To-Test
No Push-To-Test Included
Lens Color
Green
Includes Lamp Module
Lamp Module Included
Includes Lens
Lens Included
Voltage Rating - Maximum
120 V AC/DC

Description

Pilot Light, Voltage 120V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards REACH, RoHS, UL 508, WEEE
