  13. Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect

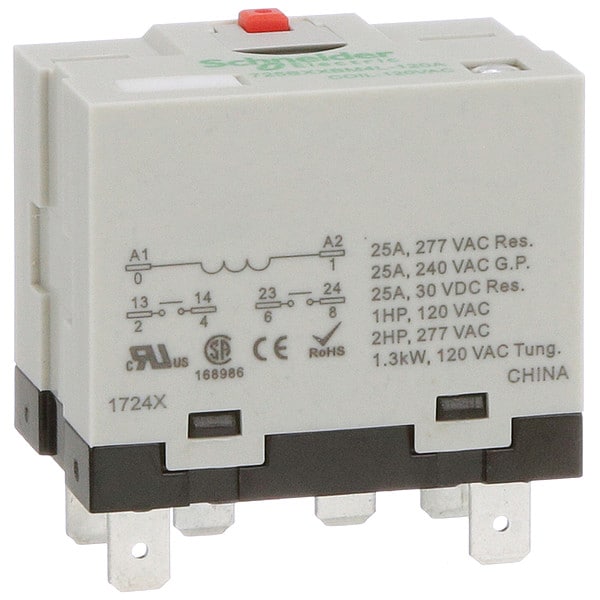

Schneider Electric Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect 725BXXBM4L-120A - main

CAD Drawings

Download CAD Files

Plug-In, Enclosed Power Relay, Square, 25 A, 6, Quick-Connect

  • Mfr # 725BXXBM4L-120A

  • Zoro # G1949437

CAD Available
product price: $23.15
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
725BXXBM4L-120A
Zoro #
G1949437
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.00"H, 1.97"W, 1.30"D
Overall Height - Relay
2.0 in
Body Depth
1.3 in
Flat Pin Width
0.25 in
Body Height
2 in
Body Width
1.97 in
Overall Depth
2.02 in
Height
1.97 in (50 mm)
Width
1.30 in (33.1 mm)
Depth
2.09 in (53.05 mm)
Body Height - Relay
2.0 in
Body Depth - Relay
1.3 in
Body Width - Relay
1.97 in

Details

Item
Enclosed Power Relay
Mounting Style
Plug-In
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
Current Rating
25 A
Contact Form
DPST-NO
Contact Rating (AC)
25 A @ 240/277V
Contact Rating (DC)
25 A @ 28/30V
Contact Form - Relay
DPST-NO
Features
2hp @ 277V AC, LED & Button
Mounting
Plug-In Socket
HP @ 120V
1
Mounting - Relay
Plug In
Pins
6
Coil Rating
2.5VA, 1.9W
HP @ 240V
2
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Item - Relay
Enclosed Power Relay
DC Contact Rating - Relay
25A @ 28V
Contact Material
Silver Alloy
Hz
50/60
Power Consumption - Relay
2.5 VA
Hz - Electrical
50/60 Hz
Coil Volts
120V AC
Number of Pins - Relay
6
AC Contact Rating - Relay
25A @ 277V
Electrical Connection - Power Relay
1/4 in Tab Terminal
Contact Amp Rating (Resistive)
25A @ 277VAC/30VDC
Number of Poles
2
Mechanical Operating Durability
5,000,000
Maximum Switching Voltage
240V, 277V
Status Indicator
LED Indicator, Mechanical Flag
Maximum Operating Temperature
131 Degrees F
Motor Rated
Yes
Dielectric Strength
2,000V AC Between Poles, 4,000V AC Between Coil and Contact
Input Voltage
102 to 132V AC
Horsepower @ 240V AC
2 hp
Minimum Switching Current
100 mA
Series
Harmony(TM) 725 Power Series
Base Type
Socket
Electrical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
Frequency
50/60 Hz
IP Rating
IP40
Operating Current
25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)
Socket Code
M
Response Time
30 msec
Push-To-Test Method
Lockable
Horsepower @ 120V AC
1 hp
Weight
4.23 oz
Coil Resistance
5,200 ohm
Power Consumption
2.5 VA
CAD Available
Yes
Product Type
Plug-in relay
Electrical Durability
100000 cycles resistive IEC
[Ie] rated operational current
25 A at 277 V AC (on resistive load) conforming to UL; 25 A at 240 V AC (general purpose) conforming to UL; 25 A at 30 V DC (on resistive load) conforming to UL; 25 A at 240 V AC (on resistive load) conforming to IEC; 25 A at 28 V DC (on resistive load) conforming to IEC
Average Coil Consumption
2.50 VA
Contacts Material
Silver alloy contacts
Control Type
Lockable test button
Connections - terminals
Quick-connect terminal strips 6.35 x 0.8 mm
Rated Power in HP
1 hp 120 V AC; 2 hp 277 V AC
[Uc] control circuit voltage
120 V
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Mechanical Durability
5000000 cycles
Series name
Power
Contact Composition
2 NO
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Product Certifications
UL; CSA; CE
Rated power in W
1.3 kW 120 V tungsten
Nominal input voltage
102...132 V AC 50/60 Hz
Local Signalling
LED indicator; Flag
Product Range
Harmony Electromechanical Relays
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.25 in, Number of Pins 6, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.3 in, Body Width 1.97 in, Coil Resistance 5,200 ohm
