  13. Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

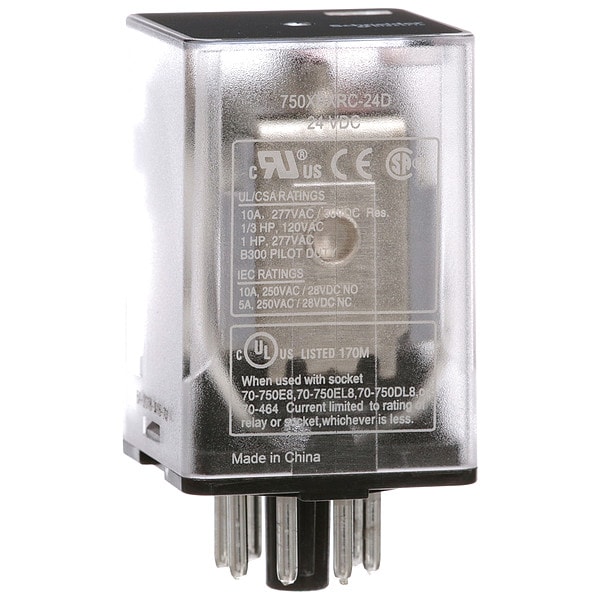

Schneider Electric Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin 750XBXRC-24D - main

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 750XBXRC-24D

  • Zoro # G9784521

product price: $20.19
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
750XBXRC-24D
Zoro #
G9784521
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.09 in
Body Depth
2.05 in
Body Width
1.38 in
Overall Depth
2.05 in
Body Height
1.4 in
Depth
1.40 in (35.5 mm)
Width
1.38 in (35 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.4 W
Socket
Mfr. No. 70-750E8-1, 70-750DL8-1, 70-464-1, 70-169-1
Status Indicator
Mechanical Flag
Socket Code
A
Contact Material
Silver Alloy
Features
Clear Cover
Standards
CE Certified, CSA Certified, EAC, UL Listed
Input Voltage
24V DC
Push-To-Test Method
No Test Button
Minimum Switching Current
10 mA
Sealing
Enclosed
Maximum Switching Voltage
250V AC, 28V DC, 300V AC, 30V DC
Mechanical Operating Durability
5,000,000
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Power Consumption
1.4 W
Horsepower @ 120V AC
1/3 hp
IP Rating
IP40
Response Time
20 msec
Coil Resistance
470 ohm
Maximum Operating Temperature
131 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Motor Rated
Yes
Series
750R Series
Pin Shape
Round
Electrical Operating Durability
100,000
Horsepower @ 240V AC
1/2 hp
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Minimum Operating Temperature
-40 Degrees F
Weight
2.93 oz
Contact Composition
2 NC + 2 NO
Control Circuit Voltage Limits
0.8...1.1 Un DC
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Operating Time
20 ms
Product Certifications
UL; CSA; CE; EAC
Connections Terminals
octal terminal connector socket 8 pins)
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Shock Resistance
10 gn
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 2.05 in, Body Height 1.4 in
