  13. Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

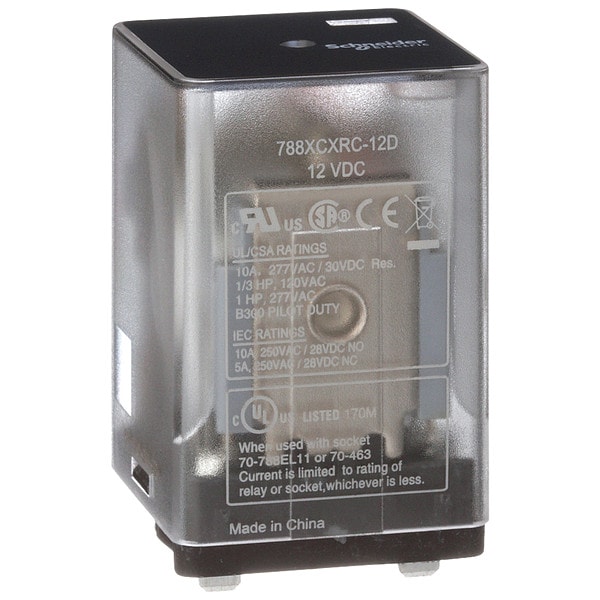

Schneider Electric Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal 788XCXRC-12D - main

Plug-In, General Purpose Relay, Square, 10 A, 11 Pins, Blade Terminal

  • Mfr # 788XCXRC-12D

  • Zoro # G9784302

product price: $19.55
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
788XCXRC-12D
Zoro #
G9784302
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.97 in
Body Width
1.38 in
Overall Depth
1.97 in
Flat Pin Width
0.189 in
Body Height
1.4 in
Body Depth
1.97 in
Depth
1.40 in (35.5 mm)
Width
1.38 in (35 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
12V DC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1
Contact Rating (DC)
10 A @ 28V
Standards
CE Certified, CSA Certified, EAC, UL Listed
Power Consumption - Relay
1.4 W
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
C
Contact Material
Silver Alloy
Features
Clear Cover
Status Indicator
Mechanical Flag
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Response Time
20 msec
IP Rating
IP40
Horsepower @ 120V AC
1/3 hp
Maximum Operating Temperature
131 Degrees F
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Series
788R Series
Mechanical Operating Durability
5,000,000
Horsepower @ 240V AC
1/2 hp
Sealing
Enclosed
Minimum Operating Temperature
-40 Degrees F
Coil Resistance
120 ohm
Maximum Switching Voltage
250V, 300V
Power Consumption
1.4 W
Push-To-Test Method
Manual Push Test Button
Pin Shape
Flat
Input Voltage
12V DC
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Motor Rated
Yes
Minimum Switching Current
10 mA
Resistance Properties
Shock-Resistant, Vibration-Resistant
Weight
2.93 oz
Electrical Operating Durability
100,000
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Product Certifications
UL; CSA; CE; EAC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
3 NO + 3 NC
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Operating Time
20 ms
Shock Resistance
10 gn
Control Circuit Voltage Limits
0.8...1.1 Un DC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.97 in, Body Height 1.4 in
