Shop SCHNEIDER ELECTRIC

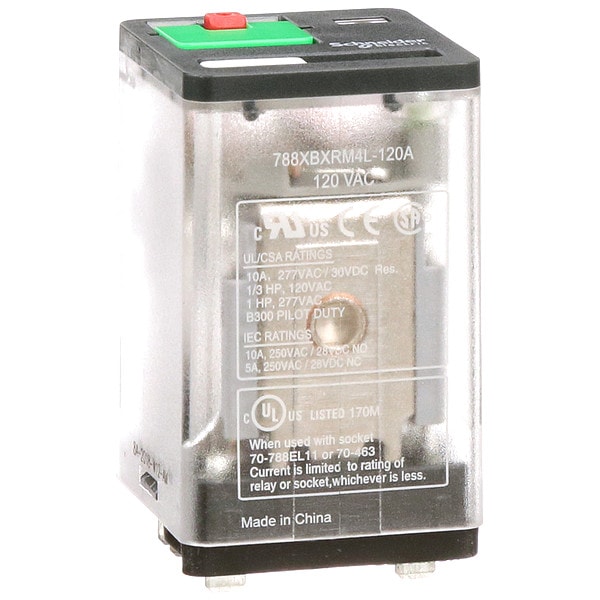

Plug-In, General Purpose Relay, Square, 10 A, 8, Blade Terminal

  • Mfr # 788XBXRM4L-120A

  • Zoro # G9784354

product price:  $20.95
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
788XBXRM4L-120A
Zoro #
G9784354
UPC #
-
Country of Origin
China

Dimensions

Body Width - Relay
1.4 in
Body Height - Relay
2.09 in
Overall Height - Relay
2.09 in
Body Depth - Relay
1.38 in
Body Height
1.4 in
Overall Depth
2.09 in
Body Width
1.38 in
Flat Pin Width
0.189 in
Body Depth
2.09 in
Depth
1.40 in (35.5 mm)
Width
1.38 in (35 mm)
Height
2.09 in (53 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Blade Terminal
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V, 5 A @ 250V-1 (NC)
Contact Rating (DC)
10 A @ 28V
Pins
8
Power Consumption - Relay
3 VA
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Contact Material
Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Number of Pins - Relay
8
DC Contact Rating - Relay
10A @ 28V
Item - Relay
General Purpose Relay
HP @ 120V
1/3 hp
Standards
CE Certified, CSA Certified, EAC, UL Listed
AC Contact Rating - Relay
10A @ 277V
Contact Rating
10A @ 277VAC/30VDC
HP @ 240V
1/2 hp
Features
Clear Cover
Socket Code
C
Base Type
Square
Push To Test
Lockable
Contact Form - Relay
DPDT
Coil Volts
120V AC
Status Indicator
LED Indicator
Horsepower @ 240V AC
1/2 hp
Sealing
Enclosed
Response Time
20 msec
Weight
2.93 oz
Maximum Operating Temperature
131 Degrees F
Electrical Operating Durability
100,000
Pin Shape
Flat
Horsepower @ 120V AC
1/3 hp
Resistance Properties
Shock-Resistant, Vibration-Resistant
Push-To-Test Method
Lockable
Mechanical Operating Durability
5,000,000
Series
788R Series
IP Rating
IP40
Input Voltage
120V AC
Maximum Switching Voltage
250V, 300V
Coil Resistance
1,700 ohm
Minimum Switching Current
10 mA
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Poles, 2,500V AC Between Coil and Contact
Power Consumption
3 VA
Operating Current
10 A at 250V AC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 277V AC (Resistive Load Conforming to UL), 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC), 10 A at 30V DC (Resistive Load Conforming to UL), 5 A at 250V AC-1 (1 NC Resistive Load Conforming to IEC), 5 A at 28V DC-1 (1 NC Resistive Load Conforming to IEC)
Motor Rated
Yes
Electrical Durability
100000 cycles
Control Circuit Voltage Limits
0.85...1.1 Un AC
Contact Composition
2 NC + 2 NO
Shock Resistance
10 gn
[Ue] rated operational voltage
120 V AC
Contacts Material
Silver alloy, gold flashed
Local Signalling
LED Cover; Flag
Mechanical Durability
5000000 cycles
Product Certifications
UL; CSA; CE; EAC
Rated Power in HP
0.33 HP 120 V AC; 1 HP 277 V AC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Vibration Resistance
+/- 1 mm 10 to 35 Hz in operation; 3 gn 35 to 150 Hz in operation
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Operating Time
20 ms
Rated Operational Current
10 A at 277 V AC (on resistive load) conforming to UL; 10 A at 30 V DC (on resistive load) conforming to UL; 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC; 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC; 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC; 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC
Control Type
Lockable test button
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Resistance
1700 Ohm
Product Type
Plug-in electromechanical relay

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 2.09 in, Body Height 1.4 in
