  13. Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

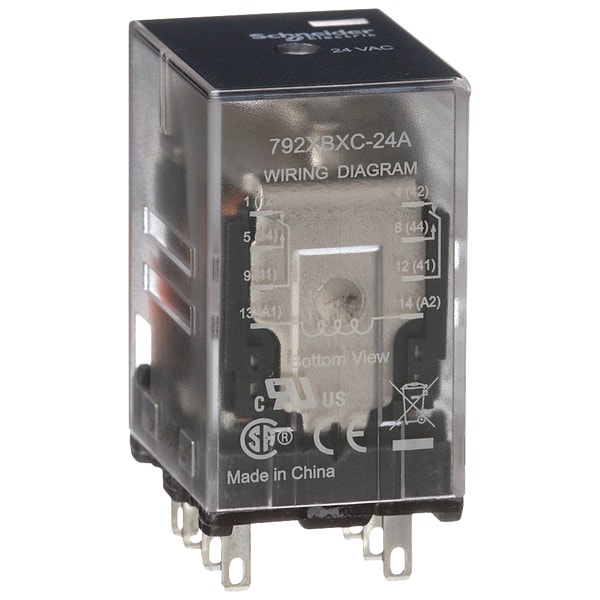

Schneider Electric Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector 792XBXC-24A - main

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

  • Mfr # 792XBXC-24A

  • Zoro # G0069478

product price: $8.15
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XBXC-24A
Zoro #
G0069478
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Height
1.57 in
Overall Depth
1.97 in
Body Depth
1.07 in
Body Width
0.83 in
Depth
1.07 in (27.2 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 277V
Contact Rating (DC)
12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)
Standards
CE Certified, CSA Certified, UL Listed
Power Consumption - Relay
1.2 VA
Contact Material
Gold Flashed Silver
Status Indicator
Mechanical Flag
Socket Code
Q
Features
Clear Cover
Socket
Mfr. No. 70-782EL8
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Horsepower @ 120V AC
1/2 hp
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature
-40 Degrees F
Power Consumption
0.9 VA
Weight
1.31 oz
Electrical Operating Durability
100,000
Horsepower @ 240V AC
1 hp
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Maximum Operating Temperature
131 Degrees F
Push-To-Test Method
Manual Push Test Button
Mechanical Operating Durability
10,000,000
IP Rating
IP40
Minimum Switching Current
10 mA
Maximum Switching Voltage
250V AC, 300V DC
Response Time
25 msec
Input Voltage
24V AC
Operating Current
12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)
Series
792 Series
Coil Resistance
177 ohm
For Use With
General Purpose Relay
Motor Rated
Yes
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Power consumption in VA
0.9 VA AC
Product Certifications
UL; CSA; CE
Motor Power HP
0.5 hp 120 V AC; 1 hp 277 V AC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Product Range
Legacy
Surge Withstand Duration
1.2/50µs
Voltage Range
0.8...1.1 Un AC/DC
Operating Time
25 ms; 20 ms at maximum rated voltage
Connections Terminals
Faston connectors
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Shock Resistance
10 gn in operation; 30 gn not operating
Contact Composition
2 NO + 2 NC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.07 in, Body Height 1.57 in
