  13. Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

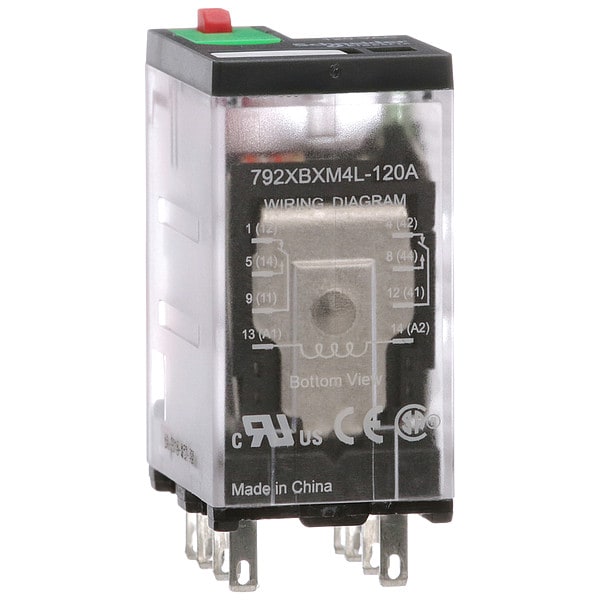

Schneider Electric Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector 792XBXM4L-120A - main

CAD Drawings

Download CAD Files

Plug-In, General Purpose Relay, Square, 12 A, 8 Pins, Faston Connector

  • Mfr # 792XBXM4L-120A

  • Zoro # G0059300

CAD Available
product price: $33.45
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XBXM4L-120A
Zoro #
G0059300
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Overall Depth
1.81 in
Body Width
0.83 in
Flat Pin Width
0.02 in
Body Height
1.07 in
Body Depth
1.57 in
Depth
1.07 in (27.2 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
120V AC
Current Rating
12 A
Contact Form
DPDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 277V
Contact Rating (DC)
12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC)
Standards
CE Certified, CSA Certified, UL Listed
Socket Code
Q
Power Consumption - Relay
1.2 VA
Status Indicator
LED and Mechanical Flag
Socket
Mfr. No. 70-782EL8
Contact Material
Gold Flashed Silver
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Minimum Switching Current
10 mA
Maximum Switching Voltage
250V AC, 300V DC
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/2 hp
Horsepower @ 240V AC
1 hp
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
IP Rating
IP40
Weight
1.31 oz
Maximum Operating Temperature
131 Degrees F
Response Time
25 msec
Electrical Operating Durability
100,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Series
792 Series
Push-To-Test Method
Lockable Push Test Button
Motor Rated
Yes
Input Voltage
120V AC
Coil Resistance
3,630 ohm
Power Consumption
0.9 VA
Operating Current
12 A AC-1 (NO Conforming to IEC), 12 A at 120V AC (Conforming to UL), 12 A at 277V AC (Conforming to UL), 12 A at 30V DC (Conforming to UL), 12 A DC-1 (NO Conforming to IEC), 6 A AC-1 (NC Conforming to IEC), 6 A DC-1 (NC Conforming to IEC)
Minimum Operating Temperature
-40 Degrees F
For Use With
General Purpose Relay
Motor Power HP
0.5 hp 120 V AC; 1 hp 277 V AC
Power consumption in VA
0.9 VA AC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Control Type
Lockable test button
Contact Composition
2 NO + 2 NC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Operating Time
25 ms; 20 ms at maximum rated voltage
Shock Resistance
10 gn in operation; 30 gn not operating
Product Certifications
UL; CSA; CE
Connections Terminals
Faston connectors
Voltage Range
0.8...1.1 Un AC/DC
Surge Withstand Duration
1.2/50µs
Product Range
Legacy
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 8, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 120V, 12 A @ 277V, 12 A @ AC-1 (NO), 6 A @ AC-1 (NC), Contact Rating (DC) 12 A @ 30V, 12 A @ DC-1 (NO), 6 A @ DC-1 (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
