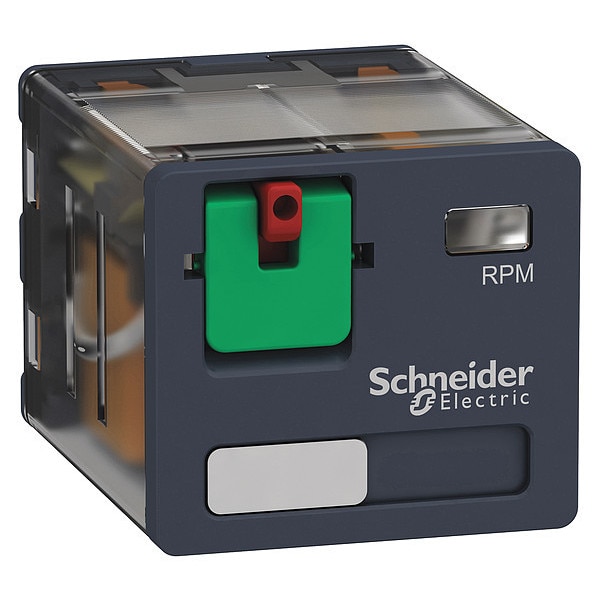

Schneider Electric Plug-In, General Purpose Relay, Square, 15 A, 11 Pins, Quick Connect RPM31F7 - main

Plug-In, General Purpose Relay, Square, 15 A, 11 Pins, Quick Connect

  • Mfr # RPM31F7

  • Zoro # G2393605

product price: $10.79
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RPM31F7
Zoro #
G2393605
UPC #
785901437819
Country of Origin
China

Dimensions

Overall Height - Relay
2.13 in
Overall Depth
1.82 in
Flat Pin Width
0.18 in
Body Depth
1.54 in
Body Height
1.06 in
Body Width
1.22 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
3PDT
Contact Rating (AC)
15 A @ 250V
Contact Rating (DC)
15 A @ 28V
Status Indicator
Mechanical Flag
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.7 VA
Features
Plug In Protection Module to Protect Against Electrical Spikes
Standards
CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Socket Code
E
Contact Material
Silver Alloy
Socket
Mfr. No. RPZF3
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Response Time
20 msec
Horsepower @ 240V AC
Not Rated
Coil Resistance
2,880 ohm
IP Rating
IP40
Dielectric Strength
1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Reinforced, 2,000V AC Between Poles with Basic
Pin Shape
Flat
Power Consumption
1.7 VA
For Use With
Hard-Wired Logic Automated Systems
Motor Rated
Not Rated - Not Rated
Maximum Switching Voltage
250V
Input Voltage
132V AC
Minimum Switching Current
10 mA
Series
Harmony(TM) RPM Series
Frequency
50/60 Hz
Push-To-Test Method
Lockable Push Test Button
Maximum Operating Temperature
131 Degrees F
Electrical Operating Durability
100,000
Sealing
Enclosed
Horsepower @ 120V AC
Not Rated
Weight
1.92 oz
Mechanical Operating Durability
10,000,000
Switching Power
Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V
Protection Category
RT I
Switching Voltage
250 V IEC
Operating Time
20 ms at nominal voltage

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.18 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.54 in, Body Height 1.06 in, Body Width 1.22 in
