  13. Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector

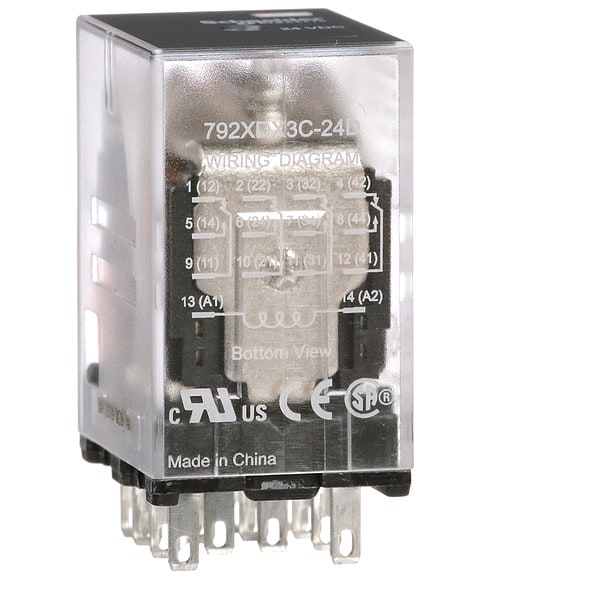

Schneider Electric Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector 792XDX3C-24D - main

Plug-In, General Purpose Relay, Square, 3 A, 14 Pins, Faston Connector

  • Mfr # 792XDX3C-24D

  • Zoro # G0059230

product price: $10.35
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDX3C-24D
Zoro #
G0059230
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.4 in
Body Width
0.83 in
Overall Depth
1.61 in
Body Height
1.07 in
Body Depth
1.37 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.2 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
3 A
Contact Form
4PDT
Contact Rating (AC)
1.00 A @ AC-1, 2.00 A @ AC-1, 3 A @ 120/240/277V
Contact Rating (DC)
1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V
Power Consumption - Relay
1.1 W
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. 70-782E14, 70-461
Contact Material
Gold Plated Bifurcated Silver
Socket Code
G
Standards
CE Certified, CSA Certified, UL Listed
Status Indicator
Mechanical Flag
Features
Clear Cover
Operating Current
1 A AC-1 (NC Conforming to IEC), 1 A DC-1 (NC Conforming to IEC), 2 A AC-1 (NO Conforming to IEC), 2 A DC-1 (NO Conforming to IEC), 3 A at 120V AC (Conforming to UL), 3 A at 240/277V AC (Conforming to UL), 3 A at 30V DC (Conforming to UL)
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Horsepower @ 240V AC
1 hp
For Use With
General Purpose Relay
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
-40 Degrees F
Power Consumption
0.8 W
Series
792 Series
Coil Resistance
640 ohm
Minimum Switching Current
3 mA
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/16 hp
Push-To-Test Method
No Test Button
Electrical Operating Durability
100,000
Input Voltage
24V DC
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Switching Voltage
250V AC, 300V DC
Motor Rated
Yes
IP Rating
IP40
Response Time
25 msec
Weight
1.31 oz
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Connections Terminals
Faston connectors
Contact Composition
4 NO + 4 NC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Motor Power HP
0.0625 hp 120 V AC
Operating Time
25 ms; 20 ms at maximum rated voltage
Surge Withstand Duration
1.2/50µs
Power consumption in W
0.8 W DC
Shock Resistance
10 gn in operation; 30 gn not operating
Product Certifications
UL; CSA; CE
Voltage Range
0.8...1.1 Un AC/DC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Product Range
Legacy
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Faston Connector, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 1.00 A @ AC-1 (NC), 2.00 A @ AC-1 (NO), 3 A @ 120/240/277V, Contact Rating (DC) 1 A @ DC-1 (NC), 2 A @ DC-1 (NO), 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.37 in, Body Height 1.07 in
