  13. Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

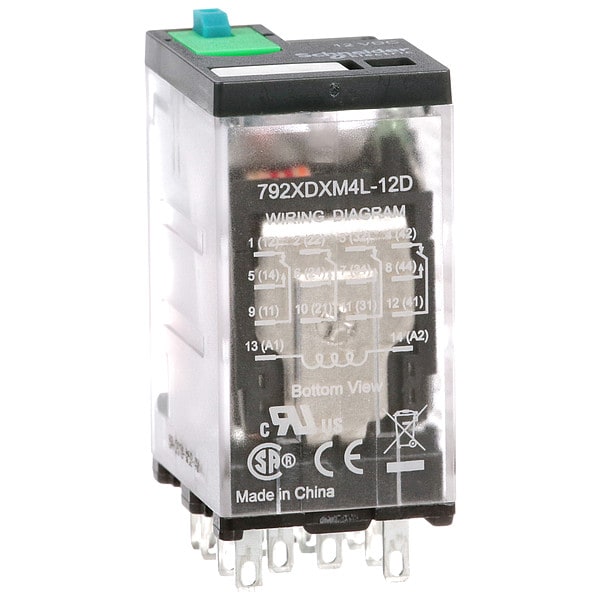

Schneider Electric Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector 792XDXM4L-12D - main

Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Faston Connector

  • Mfr # 792XDXM4L-12D

  • Zoro # G0059346

product price: $17.85
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
792XDXM4L-12D
Zoro #
G0059346
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.54 in
Body Width
0.83 in
Body Depth
1.57 in
Body Height
1.07 in
Flat Pin Width
0.02 in
Overall Depth
1.81 in
Depth
1.07 in (27.2 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
Current Rating
6 A
Contact Form
4PDT
Contact Rating (AC)
3 A @ AC-1, 6 A @ 277V, 6 A @ AC-1, 8 A @ 120V
Contact Rating (DC)
3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V
Socket
Mfr. No. 70-782E14, 70-461
Status Indicator
LED and Mechanical Flag
Standards
CE Certified, CSA Certified, UL Listed
Power Consumption - Relay
1.1 W
Socket Code
P
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Contact Material
Gold Flashed Silver
Series
792 Series
Motor Rated
Yes
Minimum Operating Temperature
-40 Degrees F
Power Consumption
0.8 W
IP Rating
IP40
Operating Current
3 A AC-1 (NC Conforming to IEC), 3 A DC-1 (NC Conforming to IEC), 6 A AC-1 (NO Conforming to IEC), 6 A at 277V AC (Conforming to UL), 6 A DC-1 (NO Conforming to IEC), 8 A at 120V AC (Conforming to UL), 8 A at 30V DC (Conforming to UL)
Maximum Operating Temperature
131 Degrees F
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 120V AC
1/3 hp
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Switching Voltage
250V AC, 300V DC
Response Time
25 msec
Input Voltage
12V DC
Electrical Operating Durability
100,000
Dielectric Strength
1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
For Use With
General Purpose Relay
Weight
1.31 oz
Horsepower @ 240V AC
1/2 hp
Mechanical Operating Durability
10,000,000
Minimum Switching Current
10 mA
Coil Resistance
160 ohm
Surge Withstand Duration
1.2/50µs
Motor Power HP
0.33 hp 120 V AC; 0.5 hp 277 V AC
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 5 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Connections Terminals
Faston connectors
Product Range
Legacy
Power consumption in W
0.8 W DC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Shock Resistance
10 gn in operation; 30 gn not operating
Operating Time
25 ms; 20 ms at maximum rated voltage
Contact Composition
4 NO + 4 NC
Voltage Range
0.8...1.1 Un AC/DC
Control Type
Lockable test button
Product Certifications
UL; CSA; CE
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Faston Connector, Flat Pin Width 0.02 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 3 A @ AC-1 (NC), 6 A @ 277V, 6 A @ AC-1 (NO), 8 A @ 120V, Contact Rating (DC) 3 A @ DC-1 (NC), 6 A @ DC-1 (NO), 8 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Lockable
