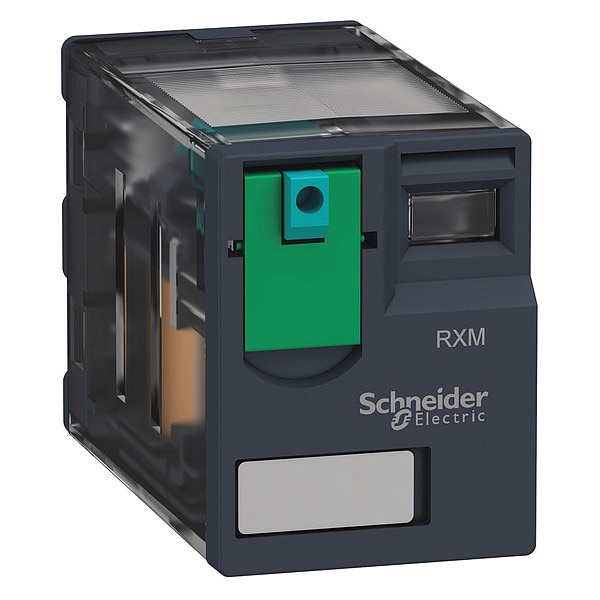

Schneider Electric Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Quick Connect RXM4AB1BD - main

CAD Viewer & Download Files

Plug-In, General Purpose Relay, Square, 6 A, 14 Pins, Quick Connect

  • Mfr # RXM4AB1BD

  • Zoro # G1600121

CAD Available
product price: $9.19
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXM4AB1BD
Zoro #
G1600121
UPC #
785901646150
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
2.17 in
Overall Depth
1.8 in
Body Width
0.82 in
Body Height
1.06 in
Body Depth
1.57 in
Flat Pin Width
0.09 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
14
Coil Voltage
24V DC
Current Rating
6 A
Contact Form
4PDT
Contact Rating (AC)
6 A @ 250V
Contact Rating (DC)
6 A @ 28V
Power Consumption - Relay
1.1 W
Standards
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Socket Code
G
Contact Material
Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket
Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M
Status Indicator
Mechanical Flag
Features
Lockable Test Button
IP Rating
IP40
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Shock-Resistant, Vibration-Resistant
Motor Rated
Not Rated - Not Rated
Maximum Switching Voltage
250V
Mechanical Operating Durability
10,000,000
Response Time
20 msec
Horsepower @ 240V AC
Not Rated
Coil Resistance
650 ohm
Sealing
Enclosed
Minimum Switching Current
10 mA
Power Consumption
0.9 W
Dielectric Strength
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation
Input Voltage
26.4V DC
Pin Shape
Flat
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 120V AC
Not Rated
Series
Harmony(TM) RXM Series
Weight
1.28 oz
Maximum Operating Temperature
131 Degrees F
For Use With
RXZE Socket
Electrical Operating Durability
100,000
Protection Category
RT I
Switching Voltage
250 V IEC
Switching Power
Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V
Operating Time
20 ms
Product Certifications
UL; CE; GOST; CSA; Lloyd's
Continuous Output Current
5 A
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Minimum Switching Capacity
170 mW 10 mA, 17 V
Drop-Out Voltage Threshold
Greater than or Equal to 0.1 Uc
Operating Rate
Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load
Pollution Degree
2
Control Circuit Voltage
24 V DC
Operating Position
Any position
Maximum Switching Capacity
1500 VA/168 W
Vibration Resistance
3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
Contact Type and Composition
4 C/O
Rated Insulation Voltage
250 V IEC; 300 V CSA; 300 V UL
Rated Operational Voltage Limits
19.2 to 26.4 V DC
Rated Impulse Withstand Voltage
2.5 kV 1.2/50 µs
Device Presentation
Complete product
Series Name
Miniature
Utilisation Coefficient
0.2
Test Levels
Level A group mounting
Resistive Rated Load
6 A 250 V AC; 6 A 28 V DC
Shock Resistance
10 gnin operation; 30 gnnot operating
Ambient Air Temperature For Operation
-40 to 131°F (-40 to 55°C)
Average Coil Resistance
650 Ohm 20°C +/- 10%
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in, Body Width 0.82 in
