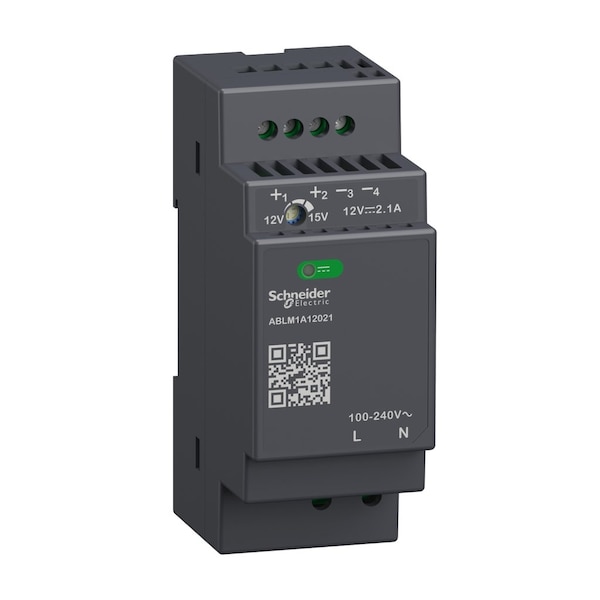

- Item
- Power Supply
- Input Voltage
- 100 to 240V AC
- Output Voltage - Nominal
- 12 V DC
- Output Power - Rated
- 25W
- Current - Output
- 2.1 A
- Mounting
- DIN Rail
- Housing Material
- Plastic Case
- Phase
- Single
- Power Supply Style
- Regulated Switch
- Hz
- 50/60 Hz
- Standards
- IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, EN/IEC 62368-1
- Connection
- Screw
- Status Indicator
- Green LED
- Output Voltage
- 12 V DC
- Power Rating
- 25W
- Phase - Electrical
- Single
- Case Material
- Plastic Case
- IP Rating
- IP20
- Style
- Regulated Switch
- Output Amps
- 2.1A
- Response Time
- < 2 s
- Network Frequency Limits
- 50-60 Hz
- Output Coupling
- serial
- Service Life
- 10 year(s)
- Power Factor
- 0.48 at 115 V AC, 0.38 at 230 V AC
- Efficiency At Full Load
- 90...264 V AC
- Line And Load Regulation
- < 0.5 % network in line, < 1 % network 0 to 100 % load
- Range of Product
- Modicon Power Supply
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60721-3-3, 10 m/s² 9-200 Hz)IEC 60721-3-3
- Power Dissipation In W
- 4.6 W
- Operating Altitude
- < 6561.68 ft (2000 m) overvoltage category III, 2000 m...5000 m overvoltage category II
- Kw Rating
- 25 W
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
- Maximum Leakage Current
- 0.25 mA 240 V AC
- Meantime Between Failure [Mtbf]
- 2500000 h at 25°C, full load, 1000000 h at 55°C, 80 % load
- Electromagnetic Compatibility
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11, immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11, immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
- Input Protection Type
- integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 4 A Curve B, external protection (recommended) 4 A Curve C
- Efficiency
- 85 % 115 V AC, 85 % 230 V AC
- Shock Resistance
- 150 m/s² 11 ms
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail, panel mounting
- Current Consumption
- < 0.8 A 115 V AC, < 0.6 A 230 V AC
- Electrical Shock Protection Class
- class II without PE connection
- Holding Time
- > 20 ms 115 V AC, > 60 ms 230 V AC
- Dielectric Strength
- 3000 V AC input/output
- Power Supply Output Current
- 2.1 A
- Ambient Air Temperature For Operation
- -25-55°C without current derating mounting position A < 6561.68 ft (2000 m), 55-70°C with current derating of 2.67 % per°C mounting position A < 6561.68 ft (2000 m)
- Inrush Current
- 25 A 115 V, 50 A 230 V
- Pollution Degree
- 2
- Residual Ripple
- < 100 mV
- Load Capacitance
- 3000µF
- Earthing System
- TN, TT, IT
- Supply
- SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
- Output Protection Type
- against overload and short-circuits automatic reset, against over temperature manual reset, against overvoltage manual reset
- Overvoltage Category
- II
