- Item

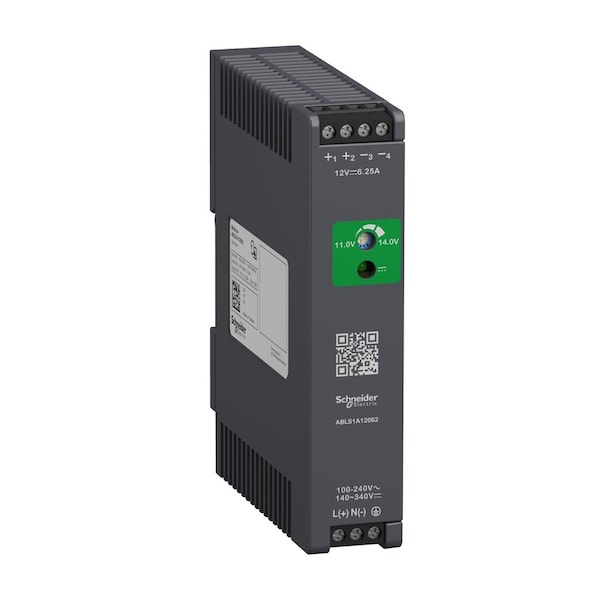

- Power Supply
- Input Voltage
- 100 to 240V AC
- Output Voltage - Nominal
- 12 V DC
- Output Power - Rated
- 75W
- Current - Output
- 6.25 A
- Mounting
- DIN Rail
- Housing Material
- Plastic Case
- Phase
- Single
- Power Supply Style
- Regulated Switch
- Output Amps
- 6.25A
- Hz
- 50/60 Hz
- Case Material
- Plastic Case
- Phase - Electrical
- Single
- Output Voltage
- 12 V DC
- Style
- Regulated Switch
- Connection
- Screw
- Standards
- IEC 62368-1, EN/IEC 61010-1, EN 61010-2-201, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, UL 61010-1, UL 61010-2-201, CSA C22.2 No 62368-1, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, EN/IEC 62368-1
- IP Rating
- IP20
- Status Indicator
- Green LED
- Power Rating
- 75W
- Service Life
- 10 year(s)
- Holding Time
- > 20 ms 115 V AC, > 40 ms 230 V AC
- Efficiency At Full Load
- 85...264 V AC without temperature derating, 120...375 V DC without temperature derating, 85...120 V DC with temperature derating
- Earthing System
- TN, TT, IT
- Shock Resistance
- 150 m/s² 11 ms
- Power Factor
- 0.55 at 115 V AC, 0.45 at 230 V AC
- Range of Product
- Modicon Power Supply
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60068-2-6, 10 m/s² 9-200 Hz)IEC 60068-2-6
- Meantime Between Failure [Mtbf]
- 700000 h at 25°C, full load conforming to SR 332
- Kw Rating
- 75 W
- Output Protection Type
- against overload and short-circuits automatic reset, against over temperature manual reset, against overvoltage manual reset
- Power Dissipation In W
- 16 W
- Response Time
- < 1.2 s
- Electromagnetic Compatibility
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
- Inrush Current
- 40.0 A 115 V, 80.0 A 230 V
- Network Frequency Limits
- 50-60 Hz
- Dielectric Strength
- 3000 V AC with input to output
- Supply
- SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
- Input Protection Type
- integrated fuse (not interchangeable) 5 A, external protection (recommended) 20 A Curve C, external protection (recommended) 13 A Curve B, external protection (recommended) 10 A Curve C
- Power Supply Output Current
- 6.25 A
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
- Electrical Shock Protection Class
- class I
- Ambient Air Temperature For Operation
-20--10°C with current derating of 1 % per°C mounting position A < 6561.68 ft (2000 m), -10-40°C without derating mounting position A 115 V AC < 6561.68 ft (2000 m), -10-50°C without derating mounting position A 230 V AC < 6561.68 ft (2000 m), 40-70°C with current derating of 1.67 % per°C mounting position A 115 V AC < 6561.68 ft (2000 m), 50-70°C with current derating of 2.5 % per°C mounting position A 230 V AC < 6561.68 ft (2000 m)
- Load Capacitance
- 5000µF
- Output Coupling
- parallel, serial
- Pollution Degree
- 2
- Maximum Leakage Current
- 1 mA 240 V AC
- Residual Ripple
- < 120 mV
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
- Line And Load Regulation
- < 0.5 % network 0 to 100 % load at 25°C, < 1 % network full voltage range in line at 25°C
- Current Consumption
- < 1.8 A 115 V AC, < 1 A 230 V AC, < 0.8 A 140 V DC
- Efficiency
- 87 % 230 V AC
- Operating Altitude
- < 5000 m overvoltage category III
- Overvoltage Category
- II
