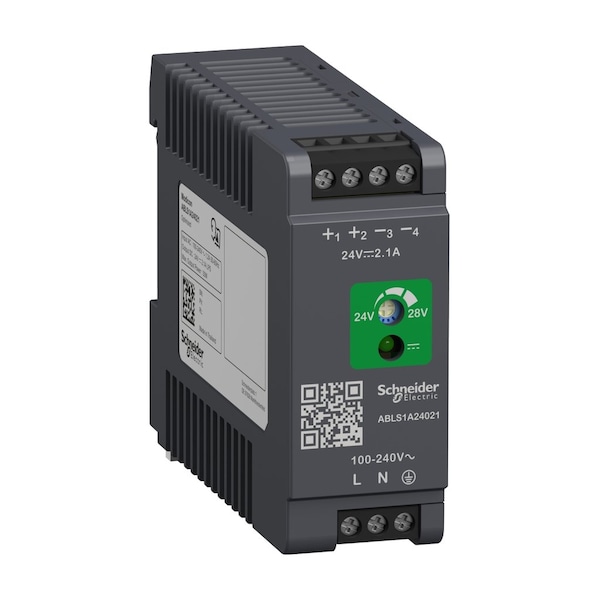

Schneider Electric Power Supply, 100 to 240V AC, 24 V DC, 50W, 2.1A, DIN Rail ABLS1A24021 - main
Shop SCHNEIDER ELECTRIC

Power Supply, 100 to 240V AC, 24 V DC, 50W, 2.1A, DIN Rail

  • Mfr # ABLS1A24021

  • Zoro # G610839578

product price:  $129.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100 to 240V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
50W
Current - Output
2.1A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ABLS1A24021
Zoro #
G610839578
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
30 mm
Overall Width
75 mm
Overall Depth
89.5 mm
Height
75 mm
Depth
89.5 mm
Width
30 mm

Details

Item
Power Supply
Input Voltage
100 to 240V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
50W
Current - Output
2.1A
Mounting
DIN Rail
Housing Material
Plastic Case
Phase
Single
Power Supply Style
Regulated Switch
Output Voltage
24 V DC
Phase - Electrical
Single
Case Material
Plastic Case
Power Rating
50W
Connection
Screw
Style
Regulated Switch
Standards
IEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, UL 508, CSA C22.2 No. 107.1, EN/IEC 62368-1
Hz
50/60 Hz
Status Indicator
Green LED
IP Rating
IP20
Output Amps
2.1A
Response Time
< 3 s
Range of Product
Modicon Power Supply
Line And Load Regulation
< 0.5 % network 0 to 100 % load at 25°C, < 1 % network full voltage range in line at 25°C
Residual Ripple
< 75 mV
Efficiency
86 % 115 V AC, 88 % 230 V AC
Pollution Degree
2
Vibration Resistance
3 mm 2-9 Hz)IEC 60068-2-6, 10 m/s² 9-200 Hz)IEC 60068-2-6
Service Life
10 year(s)
Input Protection Type
integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C
Current Consumption
< 1.1 A 115 V AC, < 0.65 A 230 V AC
Mounting Support
top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
Power Factor
0.45 at 115 V AC, 0.35 at 230 V AC
Holding Time
> 20 ms 100 V AC, > 100 ms 230 V AC
Overvoltage Category
II
Output Coupling
parallel, serial
Ambient Air Temperature For Operation
-20--10°C with current derating of 2 % per°C mounting position A < 6561.68 ft (2000 m), -10-55°C without derating mounting position A < 6561.68 ft (2000 m), 55-70°C with current derating of 3.33 % per°C mounting position A < 6561.68 ft (2000 m)
Dielectric Strength
3000 V AC with input to output
Electromagnetic Compatibility
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Operating Altitude
< 6561.68 ft (2000 m)
Supply
SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Power Supply Output Current
2.1 A
Inrush Current
35.0 A 115 V, 75.0 A 230 V
Shock Resistance
150 m/s² 11 ms
Power Dissipation In W
7.5 W
Load Capacitance
3000µF
Maximum Leakage Current
1 mA 240 V AC
Electromagnetic Emission
conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
Efficiency At Full Load
85...264 V AC
Network Frequency Limits
50-60 Hz
Kw Rating
50 W
Electrical Shock Protection Class
class I
Meantime Between Failure [Mtbf]
2000000 h at 25°C, full load conforming to SR 332, 900000 h at 55°C, 80 % load conforming to SR 332
Output Protection Type
against overload and short-circuits automatic reset, against over temperature manual reset, against overvoltage manual reset
Earthing System
TN, TT, IT

Description

POWER SUPPLY 24V 2.1A 1PH OPTIMIZED
