  11. Premium Box, for Universal Panel, 12VDC

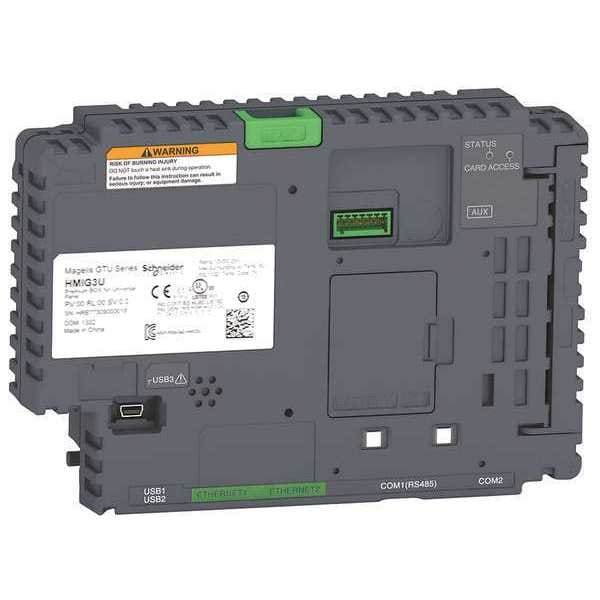

Schneider Electric Premium Box, for Universal Panel, 12VDC HMIG3U - main

Premium Box, for Universal Panel, 12VDC

  • Mfr # HMIG3U

  • Zoro # G1807261

product price: $1,972.99
/ea
Free Shipping & Returns

Key Features

For Use With
Universal Panel
Includes
Vijeo Designer Software
Features
Modular Design, Natural Convection Cooling
Voltage
24V DC
Width
188 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMIG3U
Zoro #
G1807261
UPC #
785901116318
Country of Origin
China

Dimensions

Width
188 mm
Depth
45 mm
Height
131 mm
Overall Depth
1.77 in
Overall Width
7.4 in
Overall Height
5.16 in

Details

Item
Display Module
For Use With
Universal Panel
Includes
Vijeo Designer Software
Features
Modular Design, Natural Convection Cooling
Voltage
24V DC
Standards
CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
Relative Humidity
10-90 % non-condensing
Communication Port Protocol
Modbus || Modbus TCP/IP || Uni-Telway
Processor Name
CPU RISC 600 MHz
Product Certifications
CE || cULus || ATEX || IEC-Ex || RCM || GL || KC || cUL || EAC || ABS || BV || CCS || DNV || LR || RINA || UKCA || UKEX
Range Compatibility
Harmony GTU
Data Storage Equipment
1 GB SD card
Product Or Component Type
base unit
Device Short Name
Premium Box
Software Package
Vijeo Designer run time
Pollution Degree
2 EN 61131-2 Ed.3
Operating Altitude
6561.68 ft (2000 m)
Operating System
Harmony
Integrated Connection Type
Ethernet TCP/IP 2 RJ45 || COM1 serial link RJ45 RS485 110 to 115200 bit/s || COM1 serial link RJ45 RS485 187.5 kbit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 110 to 115200 bit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s || auxiliary port terminal block || expansion unit fieldbus card || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
Memory Description
256 MB RAM internal 2 x 13 mm board) || 512 kB NVRAM backup memory
[Us] Rated Supply Voltage
12 to 24 V DC power supply
Type Of Cooling
natural convection
Ambient Air Temperature For Operation
0-60°C
Ambient Air Temperature For Storage
-20-60°C
Vibration Resistance
3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Port Ethernet
10BASE-T/100BASE-TX/1000BASE-T
Electromagnetic Compatibility
electrostatic discharge immunity testlevel 3 EN/IEC 61000-4-2
Communication Protocol
Modbus, Modbus TCP/IP, Uni-Telway
Product Type
Display Module
Compatible with Series
Magelis GTU
Memory Type
256 Mb RAM, 512 KB NVRAM
Compatible Product Type
Universal Panel

Description

Display Module, Voltage 24V DC, For Use With Universal Panel, Includes Vijeo Designer Software
