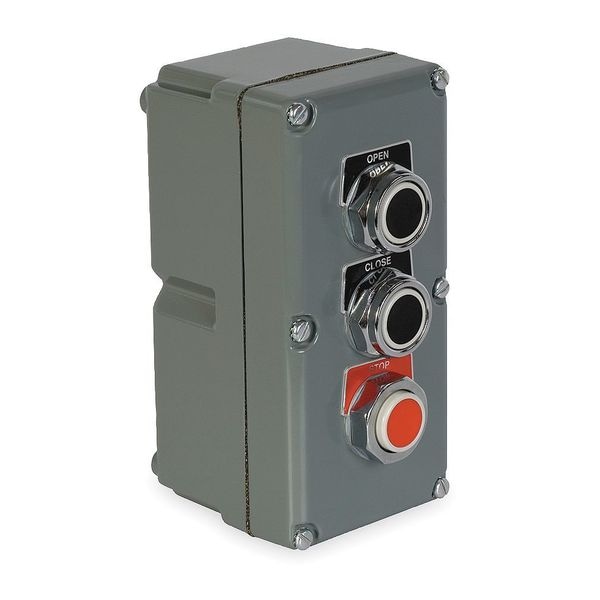

Schneider Electric Push Buttn Cntrl Station, Open/Close/Stop 9001KYK33 - main

Push Buttn Cntrl Station, Open/Close/Stop

  • Mfr # 9001KYK33

  • Zoro # G2806894

product price: $406.99
/ea
Free Shipping & Returns

Key Features

Contact Form
3NO/3NC
Number of Gangs
1
Legend
Open/Close/Stop
Type of Operator
Push Button/Push Button/Push Button
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KYK33
Zoro #
G2806894
UPC #
785901616221
Country of Origin
Mexico

Dimensions

Size
30 mm
Depth
7.5 in
Width
3.58 in
Height
3.53 in
Panel Cutout Diameter
30 mm
Overall Depth
3.53 in
Hub Size - Maximum
3/4 in
Manufacturer Warranty Length
18 mo
Overall Height
7 in
Overall Width
3.62 in

Details

Item
Control Station
Contact Form
3NO/3NC
Number of Gangs
1
Legend
Open/Close/Stop
Type of Operator
Push Button/Push Button/Push Button
Number of Pilot Lights
0
Number of Operators
3
NEMA Rating
1, 13, 3, 4
Series
9001K
Hub Style
Dead-End
Standards
CE, CSA, UL Listed
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
For Use With
indoor/outdoor
Action
Momentary/Momentary/Momentary
Mechanical Interlock
No
Hub
3/4 in NPT
Enclosure Material
Zinc
NEMA Contact Rating Designation
A600/Q600
Mounting
Wall
Enclosure Color
Gray
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Number of Speeds
1
Operator Color
(2) Black, Red
IP Rating
IP66
Terminal Connection
screw-clamp terminals
Mounting Style
Surface
Includes Mechanical Interlock
No Mechanical Interlock Included.
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
NEMA Enclosure Rating
13, 3, 4
Hazardous Location Specification
Class II, Div 2, Group G, Class III, Div 1 and 2
Operator Configuration
(3) Push Buttons
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Control Station
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Operating Temperature - Maximum
158 Degrees F

Description

Control Station, Number of Operators 3, Number of Pilot Lights 0, Size 30 mm, Legend Open/Close/Stop, Type of Operator Push Button/Push Button/Push Button, Action Momentary/Momentary/Momentary, Operator Color (2) Black, Red, Contact Form 3NO/3NC, Mechanical Interlock No, NEMA Rating 1, 13, 3, 4, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, Mounting Wall, Hub 3/4 in NPT, Height 3.53 in, Width 3.58 in, Depth 7.5 in, Enclosure Material Zinc
