  15. Push Buttn Cntrol Station, 1NC, Mshrm Head

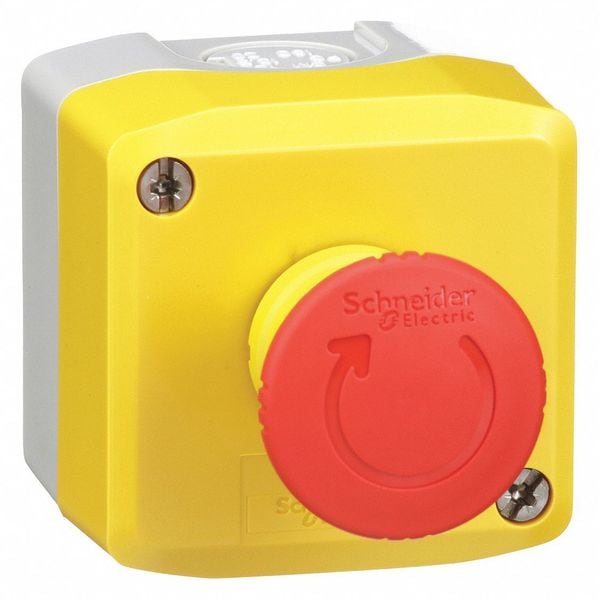

Schneider Electric Push Buttn Cntrol Station, 1NC, Mshrm Head XALK178H7 - main

Push Buttn Cntrol Station, 1NC, Mshrm Head

  • Mfr # XALK178H7

  • Zoro # G8581395

product price: $158.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NC
Basic Material
polycarbonate
Legend
No Legend
Type of Operator
40mm Mushroom Head
Number of Pilot Lights
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALK178H7
Zoro #
G8581395
UPC #
785901728382
Country of Origin
Czechia

Dimensions

Size
22 mm
Depth
3.6 in
Height
2.67 in
Width
2.67 in
Hub Size - Maximum
9/16 in
Overall Width
2.68 in
Overall Height
3.58 in
Panel Cutout Diameter
40 mm
Overall Depth
2.68 in
Manufacturer Warranty Length
18 mo

Details

Item
Control Station
Contact Form
1NC
Basic Material
polycarbonate
Legend
No Legend
Type of Operator
40mm Mushroom Head
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Series
Harmony
Hub Style
Feed-Thru
Contact Rating
10A @ 600V AC, 2.5A @ 24V DC
Standards
CSA, UL Listed
Housing Color
light grey RAL 7035)
Action
Maintained
Head Material
Plastic
Mechanical Interlock
No
Hub
ISO M20
NEMA Contact Rating Designation
A600/Q600
Mounting
Wall
IP Rating
IP66, IP67, IP69, IP69K
Enclosure Color
Light Gray/Yellow
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Operator Color
Red
Enclosure Material
Plastic
Voltage
600 V
Number of Speeds
1
Terminal Connection
screw clamp terminal
Cable Entry
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
Mounting Style
Surface
Application
emergency stop function || emergency switching off function
Operator Configuration
Mushroom Head Push Button
NEMA Enclosure Rating
13, 4X
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Maintained Action Release
Twist
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Operating Temperature - Minimum
-40 Degrees F
Product Type
Control Station
Includes Mechanical Interlock
No Mechanical Interlock Included.

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend No Legend, Type of Operator 40mm Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NC, Mechanical Interlock No, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, Contact Rating 10A @ 600V AC, 2.5A @ 24V DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, IP67, IP69, IP69K, Mounting Wall, Hub ISO M20, Height 2.67 in, Width 2.67 in, Depth 3.6 in, Head Material Plastic, Enclosure Material Plastic
