Shop SQUARE D

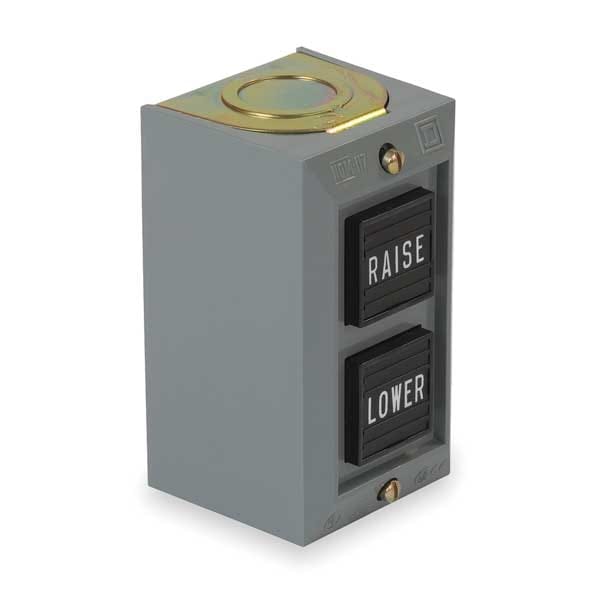

Push Buttn Cntrl Station, 2NO, Raise/Lower

  • Mfr # 9001BG209
  • Zoro # G1867713
product price:
$
106.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Basic Material
cast zinc
Legend
Raise/Lower
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001BG209
Zoro #
G1867713
UPC #
785901857372
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Depth
3.69 in
Width
2.06 in
Height
2.19 in
Overall Depth
2.34 in
Overall Width
2.06 in
Overall Height
5 in
Manufacturer Warranty Length
18 mo

Details

Item
Control Station
Number of Gangs
1
Basic Material
cast zinc
Legend
Raise/Lower
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
2NO
Number of Operators
2
NEMA Rating
1
Hub Style
Feed-Thru
Series
9001
Contact Rating
5A @ 600V AC/24V DC
Standards
CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
For Use With
indoor
Housing Color
grey
Action
Momentary/Momentary
Hub
1/2 in to 3/4 in NPT
Mechanical Interlock
No
Mounting
Wall
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEMA Contact Rating Designation
B600/P600
Enclosure Material
Plastic
IP Rating
IP20
Enclosure Color
Gray
Operator Color
(2) Black
Number of Speeds
1
Mounting Style
Surface
Application
two functions
Marking
CE
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Contact Type and Composition
2 NO
NEMA Degree Of Protection
NEMA 1
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Rated Operational Current
5 A 600 V, AC
Mechanical Durability
5000000 cycles
Device Mounting
Surface
Control Station Composition
2 push-buttons, white RAISE-LOWER
Product Certifications
UL listed file E42259 CCN NKCR; CSA LR25490 class 3211 03
Product Or Component Type
Complete control station
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Hazardous Location Specification
Not Rated
Operator Configuration
(2) Push Buttons
Operating Temperature - Minimum
-13 Degrees F
Product Type
Control Station
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
NEMA Enclosure Rating
1
Includes Mechanical Interlock
No Mechanical Interlock Included.

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Raise/Lower, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, NEMA Contact Rating Designation B600/P600, IP Rating IP20, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 2.06 in, Depth 3.69 in, Enclosure Material Plastic, Enclosure Color Gray
