  8. Push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 1 NC

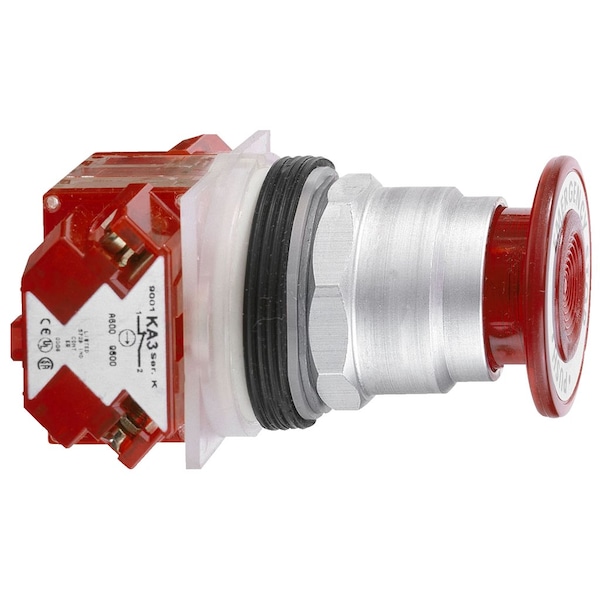

Schneider Electric Push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 1 NC 9001KR9R21H6 - main

Push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 1 NC

  • Mfr # 9001KR9R21H6

  • Zoro # G3299691

product price:  $160.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Panel Cutout Diameter
30 mm
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR9R21H6
Zoro #
G3299691
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Bezel Material
metal
Contacts Type And Composition
1 NC
Mechanical Durability
5000000 cycles
Ambient Air Temperature For Operation
-25-70°C
Type Of Operator
push-pull
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Contact Operation
standard
[Uimp] Rated Impulse Withstand Voltage
2.5 kV EN/IEC 60947-1
Tightening Torque
0.8-0.8 N.m EN/IEC 60947-1
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colour
red
Shape Of Signaling Unit Head
round
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Ip Degree Of Protection
IP66 IEC 60529
Product Or Component Type
push-button
Product Certifications
UL 508 || NEMA
Shape Of Screw Head
cross slotted
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Short-Circuit Protection
10 A cartridge fuse EN/IEC 60947-5-1
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
9001K
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
[Ith] Conventional Free Air Thermal Current
10 A
Operator Additional Information
metal guard
Overvoltage Category
class II IEC 61140
Operator Profile
mushroom Ø 57 mm, red mushroom Ø 57 mm, unmarked
Shock Resistance
50 gn IEC 60068-2-27
Device Presentation
complete product
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TC
Operating Position
any position
Contacts Material
silver alloy contacts
Operator Position Information
2 positions
Connections - Terminals
screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1
Positive Opening
with IEC 60947-5-2
Range of Product
Harmony 9001K

Description

PUSH BUTTON 600VAC 10A 30MM T-K
