  15. Push Button Operator, 16 mm, SPDT, Green

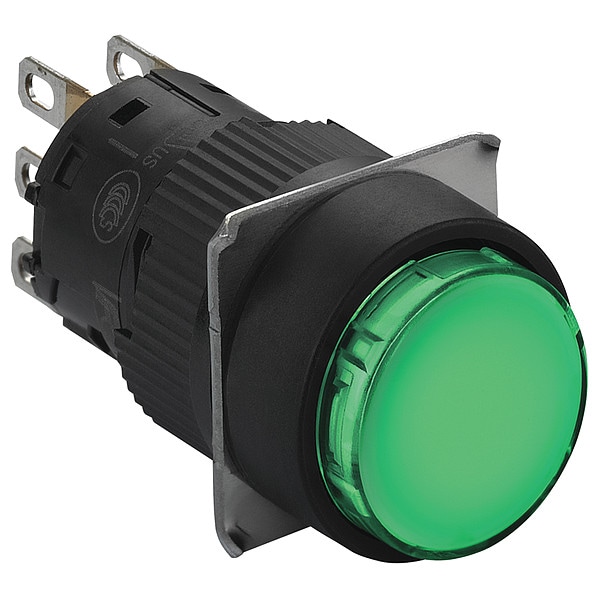

Schneider Electric Push Button Operator, 16 mm, SPDT, Green XB6EAA31P - main

Push Button Operator, 16 mm, SPDT, Green

  • Mfr # XB6EAA31P

  • Zoro # G3463093

product price: $11.65
/ea
Sold in multiples of 50 for $582.50

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
16 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6EAA31P
Zoro #
G3463093
UPC #
785901406501
Country of Origin
China

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Width
0.71 in
Overall Depth
1.58 in
Overall Height
0.71 in
Manufacturer Warranty Length
18 mo
Mounting Diameter
16 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Material
Plastic
Color
Green
AC Contact Rating
0.5 A @ 240 V, 1 A @ 120 V
Series
XB6E
Basic Material
Plastic
Bezel Material
Plastic
Number of Operators
1
Features
Circularity Profile, Mercury Free, Toxic Heavy Metal Free
IP Rating
IP65
Type of Operator
Round Flush Button
DC Contact Rating
0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V
Contact Rating
0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC
Contact Form
SPDT
Bezel
Plastic
Product Type
Push Button Operators
Number of Indicator Lights
0
Operating Temperature - Maximum
131 Degrees F
Mechanical Operating Durability
1.00 x 10^6
Operator Voltage Rating - Maximum
240 V AC
Operator Material
Plastic
Operating Temperature - Minimum
14 Degrees F
NEMA Enclosure Rating
1, 12
Contact Operation
snap action
Product Or Component Type
monolithic push-button
[Ie] Rated Operational Current
1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1
Tightening Torque
0.6-1 N.m
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
Contact Resistance
50 mOhm 1/6 V
Ambient Air Temperature For Operation
-10-55°C
Overvoltage Category
II IEC 60536
Product Certifications
CCC || cURus
Contacts Type And Composition
1 C/O
Operating Position
any position
[Ith] Conventional Free Air Thermal Current
3 A fast connector socket) || 5 A
Mechanical Durability
1000000 cycles
Vibration Resistance
1 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability
100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
Device Short Name
XB6E
Short-Circuit Protection
2 A cartridge fuse gG
Contacts Material
gold-flashed silver
Operator Profile
green flush
Shape Of Signaling Unit Head
round
Marking
CE
Ip Degree Of Protection
IP65 IEC 60529

Description

Flush Push Button Operator, 16 mm, Momentary Action, Round Flush Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Plastic, Color Green, Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, Number of Operators 1, IP Rating IP65, Legend Not Applicable, Standards CCC, CSA C22.2 No.14, cURus, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
