- MFR #
- XB4AB1
- Zoro #
- G3456513
- UPC #
- 785901553236
- Country of Origin
- Korea, Republic of

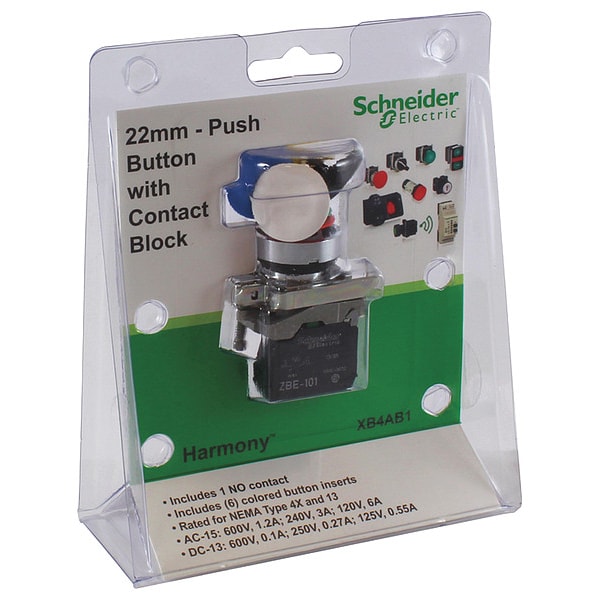

- Item
- Push Button Operator
- Push Button Style
- Flush
- Action
- Momentary
- Operator Illumination
- Non-Illuminated
- Head Color
- Black; Blue; Green
- Head Material
- Metal
- Terminal Connection
- Screw Clamp
- Standards
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Contact Form
- 1NO
- Color
- Universal
- IP Rating
- IP66
- Legend/Background Color
- No Legend
- NEMA Contact Rating Designation
- A600/Q600
- Number of Operators
- 1
- Bezel Material
- Chrome
- Series
- XB4
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- NEMA Rating
- 13, 4X
- Includes
- Momentary-Unmarked, ZB4BA9 - Non-Illuminated Operators, ZB4BZ101 - Contact Blocks
- Features
- Vibration Resistance : 5 gn 2¿500 Hz)IEC 60068-2-6
- Bezel
- Chrome Plated Metal
- Product Type
- Push Button Operators
- Number of Indicator Lights
- 0
- NEMA Enclosure Rating
- 13, 4X
- Resistance Properties
- Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
- Operator Material
- Metal
- Operating Temperature - Maximum
- 158 Degrees F
- Mechanical Operating Durability
- 5.00 x 10^6
- Operator Voltage Rating - Maximum
- 600 V AC/DC
- Operating Temperature - Minimum
- -13 Degrees F
- Operator Profile
- 6 colors choice flush, unmarked
- Ip Degree Of Protection
- IP66 IEC 60529
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Ambient Air Temperature For Storage
- -40-70°C
- Product Certifications
- CSA || LROS (Lloyds register of shipping) || BV || UL Listed || GL || DNV
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
- Device Short Name
- XB4
- Ik Degree Of Protection
- IK03 IEC 50102
- Terminals Description Iso N°1
- (13-14)NO
- Mechanical Durability
- 5000000 cycles
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Ambient Air Temperature For Operation
- -25-70°C
- Operating Force
- 3.8 N NO changing electrical state
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type
- push-button
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Shape Of Signaling Unit Head
- round
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Protective Treatment
- TH
- Overvoltage Category
- class I IEC 60536
- Positive Opening
- without
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Device Presentation
- complete product
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Operating Travel
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Fixing Collar Material
- zamak
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Electrical Reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- Type Of Operator
- spring return
- Contacts Usage
- standard contacts
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
