  13. Push Button operator, 22 mm, Green
Shop All Push Button Switches
Schneider Electric

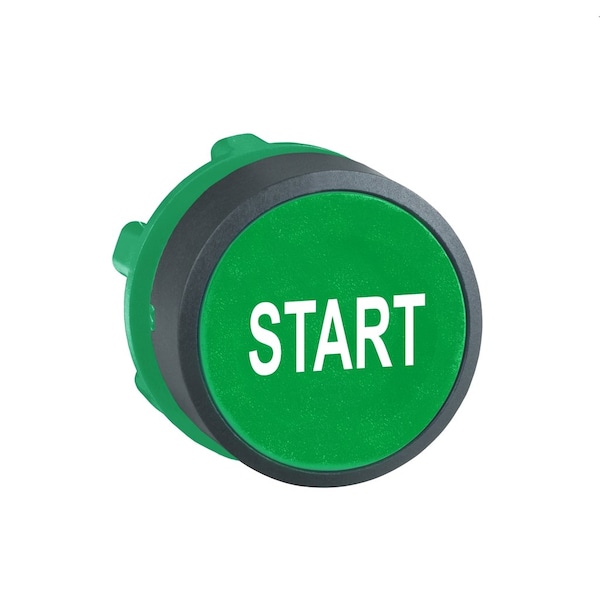

Push Button operator, 22 mm, Green

product price: $13.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Action Momentary
  • Size 22 mm
  • Head Material Plastic
  • Legend/Background Color White/Green
  • NEMA Rating 1, 13, 2, 3, 4, 4X
See all product information

Product Information

Dimensions

Size 22 mm
Cad Overall Width 29 mm
Mounting Diameter 22 mm
Cad Overall Depth 28 mm
Cad Overall Height 29 mm
Panel Cutout Diameter 22 mm
Overall Width 1.14 in
Overall Depth 1.1 in
Overall Height 1.14 in
Manufacturer Warranty Length 18 mo

Details

Action Momentary
Head Material Plastic
Legend/Background Color White/Green
NEMA Rating 1, 13, 2, 3, 4, 4X
Type of Operator Flush Button
Color Green
Legend Start
Number of Operators 1
Item Flush Push Button
Bezel Material Plastic
Basic Material Plastic
Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating IP66
Features Visually Distinct at a Distance, Snap-Fit Assembly, Double Head
Series XB5
Product Type Push Button Operators
Device Presentation basic element
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K
Nema Degree Of Protection NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head round
Mechanical Durability 10000000 cycles
Product Or Component Type head for non-illuminated push-button
Ambient Air Temperature For Operation -40-70°C
Product Certifications BV || CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || GL
Overvoltage Category class II IEC 60536
Device Short Name ZB5
Ambient Air Temperature For Storage -40-70°C
Station Name XALD 1 to 5 cut-outs || XALK 2 to 5 cut-outs
Operator Profile green flush, START white)
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Ik Degree Of Protection IK03 IEC 50102
Protective Treatment TH
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Head Type standard
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Legend Color White
Legend Background Color Green
Operator Illumination Non-Illuminated
Number of Indicator Lights 0
Hazardous Location Specification Not Rated
Operating Temperature - Minimum -40 Degrees F
Operator Material Plastic
Head Color Green
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum 158 Degrees F
Push Button Style Flush

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Plastic, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Start, Legend/Background Color White/Green, Standards Bureau Veritas, Class II IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
