  15. Push Button Operator, 30 mm, SPDT, Red

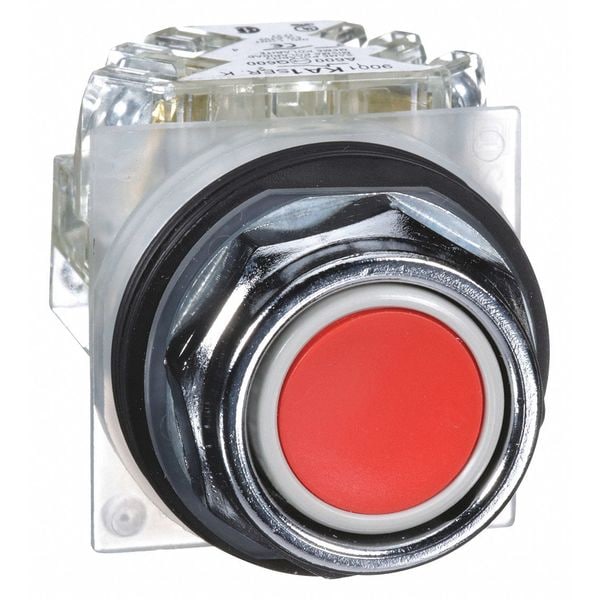

Schneider Electric Push Button Operator, 30 mm, SPDT, Red 9001KR1RH13 - main

Push Button Operator, 30 mm, SPDT, Red

  • Mfr # 9001KR1RH13

  • Zoro # G2358684

product price: $83.59
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KR1RH13
Zoro #
G2358684
UPC #
785901066811
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Cad Overall Width
48 mm
Mounting Diameter
30 mm
Cad Overall Depth
56 mm
Cad Overall Height
45 mm
Overall Height
1.77 in
Overall Width
1.89 in
Overall Depth
2.2 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Contact Form
SPDT
Number of Operators
1
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Type of Operator
Flush Button
Basic Material
Metal
Contact Rating
10A @ 600V AC
Features
Finger-Safe Terminals
Bezel
Chrome Plated Die Cast Aluminum
Material
metal
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66
Color
Red
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
9001K
Bezel Material
Metal
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type
Push Button Operators
Electrical Shock Protection Class
class II IEC 61140
Ip Degree Of Protection
IP66 IEC 60529
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Ambient Air Temperature For Operation
-25-70°C
Shape Of Screw Head
cross slotted
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Contact Operation
standard
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Cap/Operator Or Lens Colour
red
Contacts Material
silver alloy contacts
Protective Treatment
TC
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
[Ith] Conventional Free Air Thermal Current
10 A
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Mechanical Durability
5000000 cycles
Contacts Type And Composition
1 C/O
Shock Resistance
50 gn IEC 60068-2-27
Operator Profile
flush, red flush, unmarked
Device Short Name
9001K
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Operator Additional Information
metal guard
Ambient Air Temperature For Storage
-40-70°C
Terminals Description Iso N°1
(13-14-11-12)OF
Operating Position
any position
Shape Of Signaling Unit Head
octagonal
Product Or Component Type
push-button
Product Certifications
NEMA || UL 508
Positive Opening
without
Device Presentation
complete product
Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA; 0.55 A 125 V, DC-13, A600-Q600 NEMA
Conventional Free Air Thermal Current
10 A
Rated Short Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13; 0.55 kA 125 V DC-13
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
5.00 x 10^6
Operating Temperature - Minimum
-13 Degrees F
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0

Description

Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Die Cast Aluminum, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
