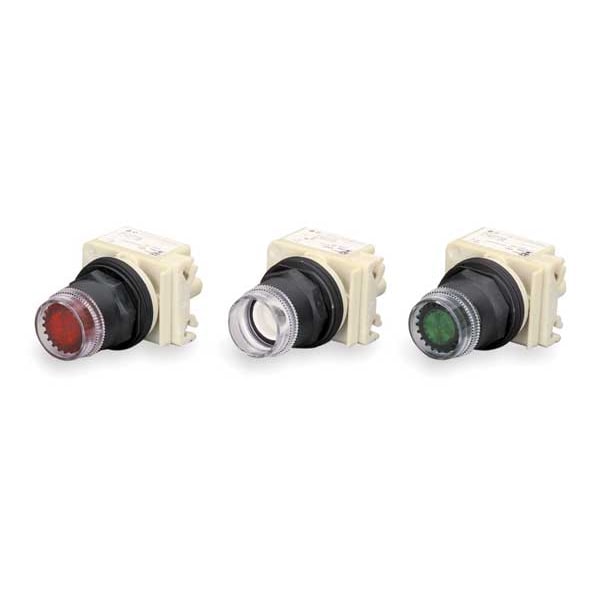

Schneider Electric Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable 9001K1L - main

Push Button Operator, Flush, Momentary Action, Not Applicable Release, Illuminated, Not Applicable

  • Mfr # 9001K1L

  • Zoro # G1988113

product price: $45.69
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K1L
Zoro #
G1988113
UPC #
785901909224
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.69 in
Overall Height
1.7 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA LR25490 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR
Lamp Type
No Lamp Module Included
Lamp Module Voltage
Module Not Included
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
IP Rating
IP66
Lamp Voltage
Dependent on Module Used
Lamp Module Type
No Lamp Module Included
Color
Clear
Bezel
Chrome Plated Metal
Basic Material
Metal
Type of Operator
Flush Guarded Button
Features
Visually Distinct at a Distance, Withstands Harsh Environments, Full Guard
Bezel Material
Metal
Number of Operators
1
Series
9001K
Nema Degree Of Protection
NEMA 1/2/3/3R/4/6/12/13
Operator Profile
flush
Device Presentation
basic element
Light Source
bulb not included, without
Bulb Base
BA 9s
Cap/Operator Or Lens Colour
without cap
Contacts Type And Composition
without contact block
Device Short Name
K
Product Certifications
NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
Operator Additional Information
plastic guard
[Ie] Rated Operational Current
10 A, AC-15 || 10 A, DC-13
Product Or Component Type
head for illuminated push-button
Light Block Supply
without supply
Rated Operational Current
10 A, AC-15; 10 A, DC-13
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Hazardous Location Specification
Not Rated
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Product Type
Push Button Operators

Description

Flush Push Button, 30 mm, Momentary, Type of Operator Flush Guarded Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Clear, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR, Features Visually Distinct at a Distance, Withstands Harsh Environments, Full Guard
