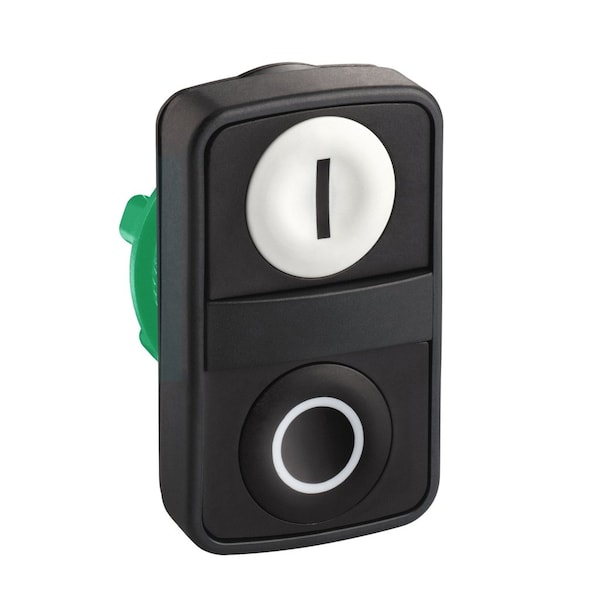

Schneider Electric Push Button Operator, Flush, Momentary / Momentary Action, Not Applicable Release, Non-Illuminated ZB5AA7121 - main

Push Button Operator, Flush, Momentary / Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # ZB5AA7121

  • Zoro # G4587545

product price: $38.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Black; White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AA7121
Zoro #
G4587545
UPC #
785901773900
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Height
50 mm
Cad Overall Width
30 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.97 in
Overall Width
1.18 in
Overall Depth
1.18 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Head Color
Black; White
Head Material
Plastic
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
IP Rating
IP66, IP67, IP69, IP69K
Shape
Rectangular
Includes
Black I on White Background and White O on Black Background
Legend/Background Color
Black/White, White/Black
Number of Heads
2
Legend
I, O
Type of Operator
(2) Flush Buttons
NEMA Rating
13, 4X
Bezel Material
Plastic
Number of Operators
2
Series
XB5
Features
Withstands Harsh Environments
Legend Color
Black/White
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
Product Or Component Type
head for double-headed push-button
Ik Degree Of Protection
IK03 IEC 50102
Operator Profile
2 flush push-buttons, black flush, O white) || white flush, I black)
Device Short Name
ZB5
Product Certifications
DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL Listed
Device Presentation
basic element
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Ambient Air Temperature For Operation
-25-70°C
Shape Of Signaling Unit Head
rectangular
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Station Name
XALD 1 cut-out
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class II IEC 60536
Mechanical Durability
1000000 cycles
Operators Description
white ''I'' - black ''O''
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529 || IP69K IEC 60529
Protective Treatment
TH
Head Type
standard
Operator Material
Plastic
Number of Indicator Lights
0
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Product Type
Multihead Operators
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Legend Background Color
Black/White
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Plastic, Bezel Material Plastic, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend I, O, Legend/Background Color Black/White, White/Black, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
