  15. Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

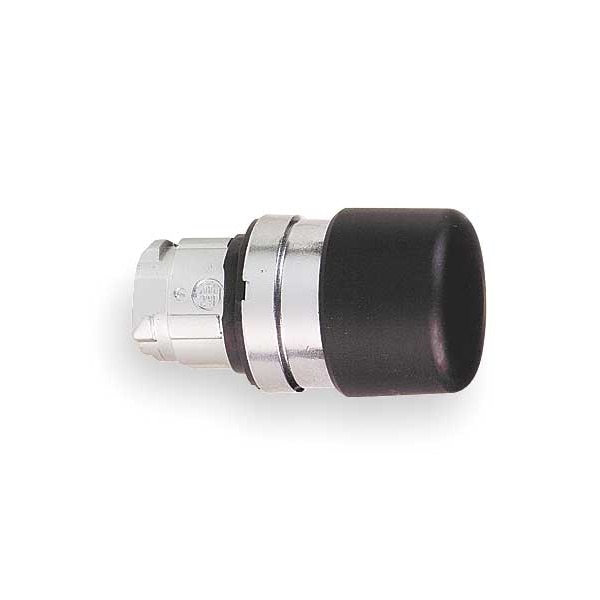

Schneider Electric Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated ZB4BC24 - main

Push Button Operator, Mushroom Head, Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # ZB4BC24

  • Zoro # G2322013

product price: $27.49
/ea

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BC24
Zoro #
G2322013
UPC #
785901381921
Country of Origin
Czechia

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
30 mm
Size
22 mm
Mounting Diameter
22 mm
Cad Overall Height
30 mm
Cad Overall Width
30 mm
Cad Overall Depth
52 mm
Manufacturer Warranty Length
18 mo
Overall Height
1.18 in
Overall Depth
2.05 in
Overall Width
1.18 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Metal
Standards
Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Bezel Material
Metal
Color
Black
Type of Operator
30mm dia Mushroom Head
Accessory Group
B
IP Rating
IP66
NEMA Rating
1, 13, 2, 3, 4, 4X
Basic Material
Metal
Features
Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness
Number of Operators
1
Series
XB4
Device Presentation
basic element
Protective Treatment
TH
Product Or Component Type
head for non-illuminated push-button
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Mechanical Durability
5000000 cycles
Device Short Name
ZB4
Product Certifications
CSA || BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping)
Ambient Air Temperature For Storage
-40-70°C
Ik Degree Of Protection
IK06 IEC 50102
Electrical Composition Code
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
black mushroom Ø 30 mm, unmarked
Overvoltage Category
class I IEC 60536
Head Type
standard
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Operator Material
Metal
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Mushroom Head Push Button, 22 mm, Momentary, Type of Operator 30mm dia Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Black, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, Legend Not Applicable, Standards Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
