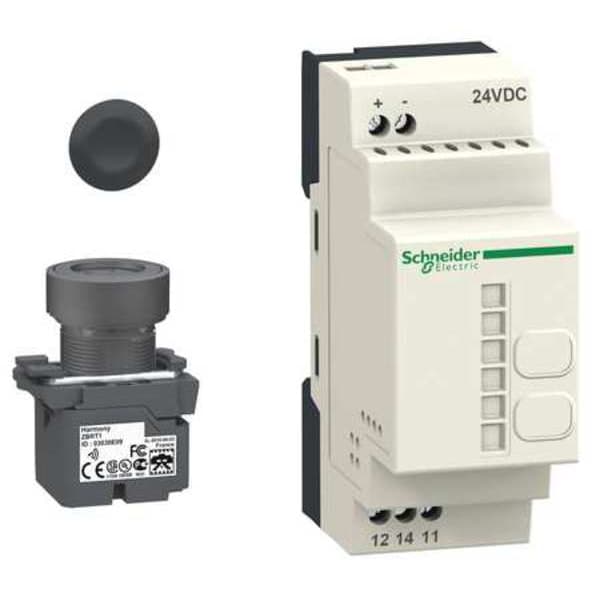

Push Button Transmitter and Receiver Kit, 22 mm, Universal

  • Mfr # XB4RFA02

  • Zoro # G3979157

product price:
$
497.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
(2) Black; (2) Green; (2) Red; (2) White; Blue; Yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB4RFA02
Zoro #
G3979157
UPC #
785901910879
Country of Origin
Indonesia

Dimensions

Panel Cutout Diameter
22 mm
Width
4.02 in
Length
4.21 in
Height
3.58 in
Size
22 mm
Length (Straight Wireway)
4.21 in
Bandwidth
5-5 MHz
Overall Depth
2.94 in
Overall Height
3.94 in
Manufacturer Warranty Length
18 mo
Overall Width
1.42 in

Details

Item
Wireless Push Button Kit
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
(2) Black; (2) Green; (2) Red; (2) White; Blue; Yellow
Head Material
Metal
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
Material
Metal
Legend Markings
No Legend
Number of Operators
1
NEMA Rating
12
Type of Operator
Flush Push Button
IP Rating
IP30
Voltage
24 to 240V AC/DC
Color
Universal
Includes
(1) Set Multiple Color Caps, Programmable Receiver with (2) Relay Outputs
Legend
None
Series
XB4R
Number Of Channels
1
Communication Port Protocol
Zigbee IEEE 802.15.4
Marking
CE
Transmission Frequency
2405 MHz transmitter || 2405 MHz receiver
Status Led
1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal
Type Of Receiver
programmable receiver 2 relays)
Antenna Type
omnidirectional
[Us] Rated Supply Voltage
24 to 240 V AC/DC 50/60 Hz, 24 to 240 V
Customizable
no
Product Or Component Type
wireless and batteryless package
Modulation Technique
O-QPSK
Product Certifications
GOST || CCC || CSA || UL || C-tick
Max Power Consumption In W
1 mW
Compatibility Code
XB4R
Control Type
wireless and batteryless push-button Ø 22 mm assembled on fixing collar
Kit Composition
1 22 mm || 1 push-button head 22 mm || 1 receiver || 1 set of caps || 1 fixing collars || 1 transmitter
Level Or Class
5M00G7W
Device Short Name
XB4R
Radio Agreement
ANATEL || FCC || RSS || ARIB T66 || ICASA || SRRC
Antenna Gain
0 dBi
Operator Voltage Rating - Maximum
24 to 240V AC/DC
NEMA Enclosure Rating
12
Operator Material
Metal

Description

Wireless Push Button Kit, Color Universal, Voltage 24 to 240V AC/DC, Action Momentary, Material Metal, NEMA Rating 12, IP Rating IP30, Number of Operators 1, Size 22 mm, Type of Operator Flush Push Button, Height 3.58 in, Width 4.02 in, Length 4.21 in, Legend Markings No Legend, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, Includes (1) Set Multiple Color Caps, Programmable Receiver with (2) Relay Outputs
