Schneider Electric

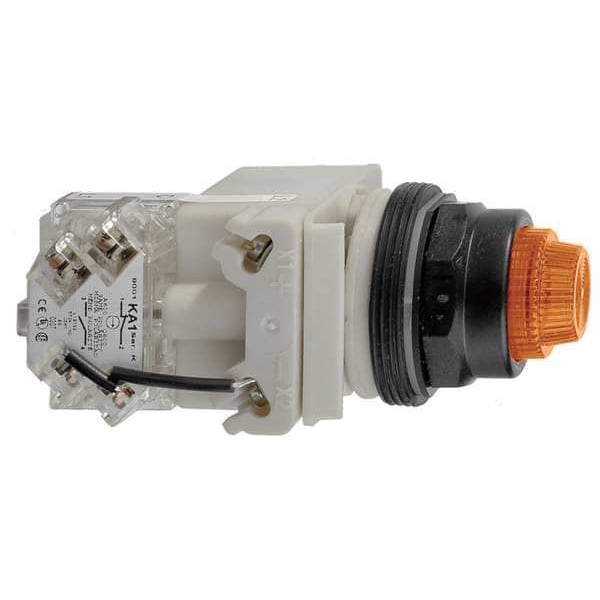

Push to Test Pilot Light, Amber, LED

product price: $184.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Amber
  • Lamp Type LED
  • Type of Operator Spring Return
  • Shape Round
See all product information

Product Information

Dimensions

Size 30 mm
Overall Height 4.1 in
Overall Depth 1.65 in
Panel Cutout Diameter 30 mm
Manufacturer Warranty Length 18 mo
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 120V AC
Color Amber
Lamp Type LED
Type of Operator Spring Return
Shape Round
Terminal Connection Screw Clamp
Contact Form 1 C/O
Lens Material Polycarbonate
Bezel Plastic
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Plastic
Lamp Voltage 120V AC
Body Material Plastic
IP Rating IP66
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
Standards REACH, RoHS, UL 508, WEEE
Lamp Color Amber
Includes Lens Lens Included
Lens Color Amber
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 4X
Series 9001SK
Lamp Voltage - Maximum 120 V AC
Includes Push-To-Test Push-To-Test Included
Includes Lamp Module Lamp Module Included
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Resistance Properties Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
Voltage Rating - Maximum 120 V AC/DC

Description

Pilot Light, Voltage 120V AC, Color Amber, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Standards REACH, RoHS, UL 508, WEEE
