  13. Push to Test Pilot Light, Green, Incand
Shop All Indicator Lights
Schneider Electric

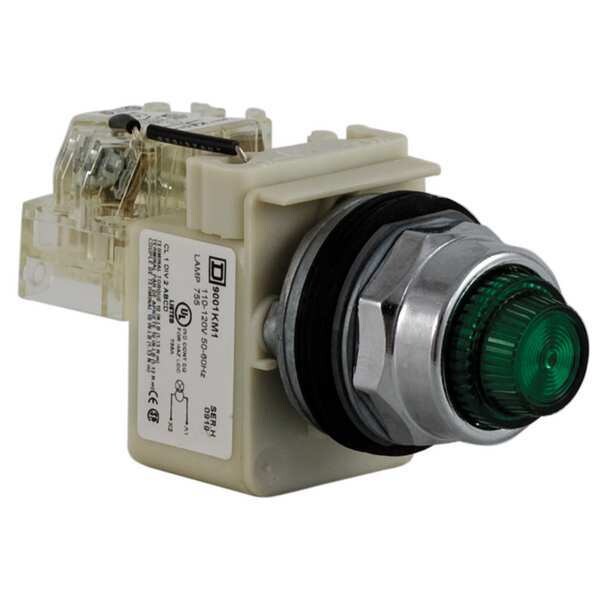

Push to Test Pilot Light, Green, Incand

product price: $132.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Color Green
  • Action Push-to-test
  • Lamp Type Incandescent
  • Shape Round
See all product information

Product Information

Dimensions

Size 30 mm
Overall Depth 1.62 in
Overall Height 3.88 in
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 30 mm
Overall Width 2.13 in

Details

Item Pilot Light
Voltage 120V AC
Color Green
Action Push-to-test
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Clamp
Contact Form 1 C/O
Lens Material Polycarbonate
Bezel Metal
Lens Type Fresnel
Lamp Module Type Transformer
Basic Material Metal
Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
IP Rating IP66
Replacement Lamps 4VCW2
Lamp Voltage 6V AC/DC
Body Material Zinc Die Cast
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
Hz 50/60 Hz
Body Finish Chrome Plated
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Series 9001K
Includes Lamp Module Lamp Module Included
Lamp Color Green
Includes Lens Lens Included
Lamp Voltage - Maximum 120 V AC
Includes Push-To-Test Push-To-Test Included
Voltage Rating - Maximum 120 V AC
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 6
Lens Color Green

Description

Pilot Light, Voltage 120V AC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Transformer, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 6V AC/DC, Replacement Lamps 4VCW2, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
