Shop All Indicator Lights
Schneider Electric

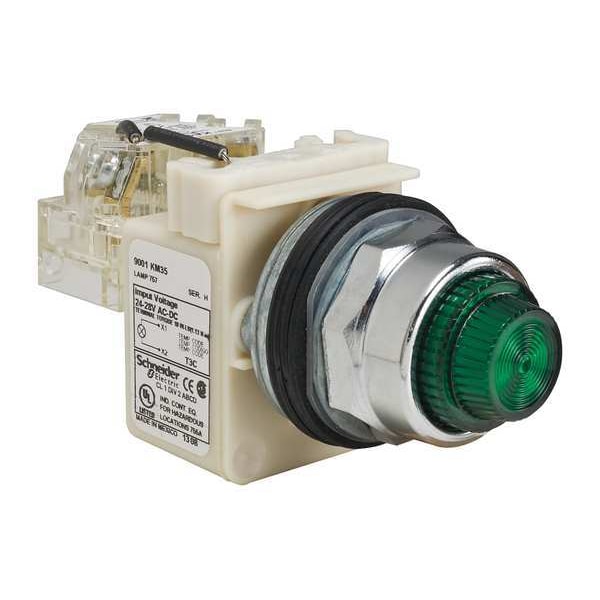

Push to Test Pilot Light, Green, Incand

product price: $117.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24V AC/DC
  • Color Green
  • Action Push-to-test
  • Lamp Type Incandescent
  • Shape Round
See all product information

Product Information

Dimensions

Size 30 mm
Manufacturer Warranty Length 18 mo
Overall Width 2.13 in
Overall Depth 1.62 in
Overall Height 3.88 in
Panel Cutout Diameter 30 mm

Details

Item Pilot Light
Voltage 24V AC/DC
Color Green
Action Push-to-test
Lamp Type Incandescent
Shape Round
Terminal Connection Screw Clamp
Contact Form 1 C/O
Lens Material Polycarbonate
Bezel Metal
Lens Type Fresnel
Lamp Module Type Full Voltage
Basic Material Metal
NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6
Lamp Voltage 24V AC/DC
Body Material Zinc Die Cast
IP Rating IP66
Replacement Lamps 2FMP7
Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
Hazardous Location Specification Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Voltage Rating - Maximum 28 V AC/DC
Body Finish Chrome Plated
Lamp Voltage - Maximum 24 V AC/DC
Lens Color Green
Series 9001K
Lamp Color Green
Includes Push-To-Test Push-To-Test Included
Includes Lens Lens Included
Includes Lamp Module Lamp Module Included
NEMA Enclosure Rating 1, 12, 13, 2, 3, 3R, 4, 6

Description

Pilot Light, Voltage 24V AC/DC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Clamp, Lens Material Polycarbonate, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 24V AC/DC, Replacement Lamps 2FMP7, Body Material Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
